3 Teaching
3.9 Other Job-editing Functions
3-59
149235-1CD
RE-CSO-A031
3 Move the cursor to the
instruction area.
4 Press [SHIFT] + [SELECT] in
the speed modify start line.
If the section is not specified, the speed of the entire job will be
changed.
5 Move the cursor to the end
line.
The line numbers of the selected lines are highlighted.
6 Select {EDIT} under the menu.

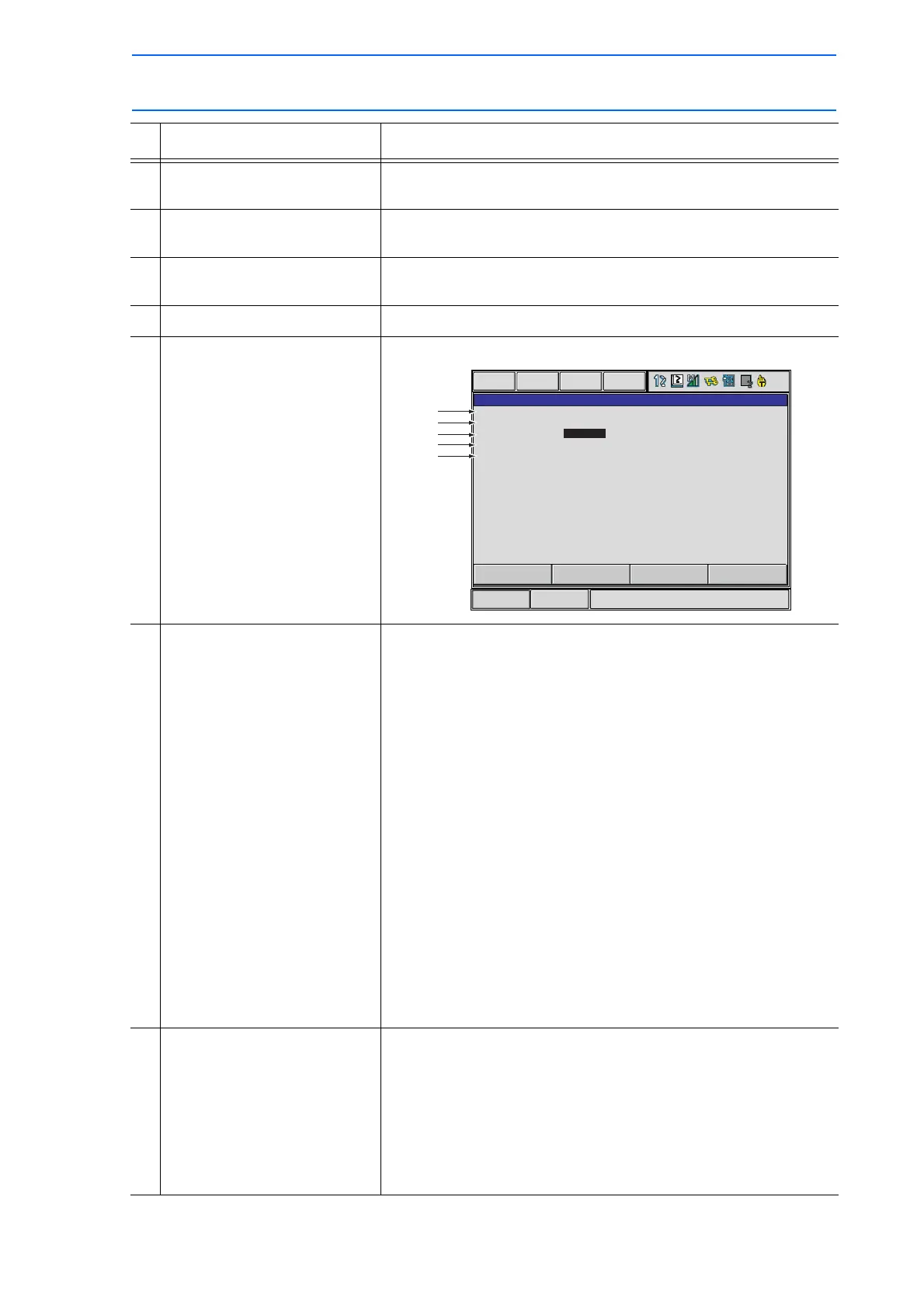

7 Select {CHANGE SPEED}. The SPEED MODIFICATION window appears.
8 Set desired items.
START LINE NO.
Displays the first line number of the section to be modi-
fied.
END LINE NO.
Displays the last line number of the section to be modi-
fied.
MODIFICATION TYPE
Selects the confirmation before changing: “CONFIRM” or
“NO CONFIRM.”
Each time [SELECT] is pressed when the cursor is on this
item, the setting alternates between “CONFIRM” and “NO
CONFIRM.”
SPEED KIND
Selects the speed type.
When [SELECT] is pressed when the cursor is on this
item, selection dialog box appears. Select the speed type
to be changed.
SPEED
Specifies the speed value.
When [SELECT] is pressed when the cursor is on this
item, the mode changes to number input mode. Input the
speed value and press [ENTER].
9 Select “EXECUTE.” The speed begins to change.
If “MODIFICATION TYPE” is set to “CONFIRM,” the confirmation
dialog box “Modifying speed” is displayed. Press [ENTER] to
change the speed on the first line and search for the next speed.
Press the UP/DOWN cursor button to keep the speed on the first
line and search for the next speed. To cancel the speed
modification, press [CANCEL].
If “MODIFICATION TYPE” is set to “NOT CONFIRM,” all the
speeds of the specified section are changed.
Operation Explanation
Short Cut
Main Menu
DETAIL EDIT
0001
0002
CONFIRM
VJ
50
START LINE NO.
END LINE NO.
MODIFICATION TYPE
SPEED KIND
SPEED
%
JOB EDIT DISPLAY UTILITY
EXECUTE CANCEL





