YASKAWA NX100 User Manual

4 Playback
4.1 Preparation for Playback
4-7
149235-1CD
RE-CSO-A031

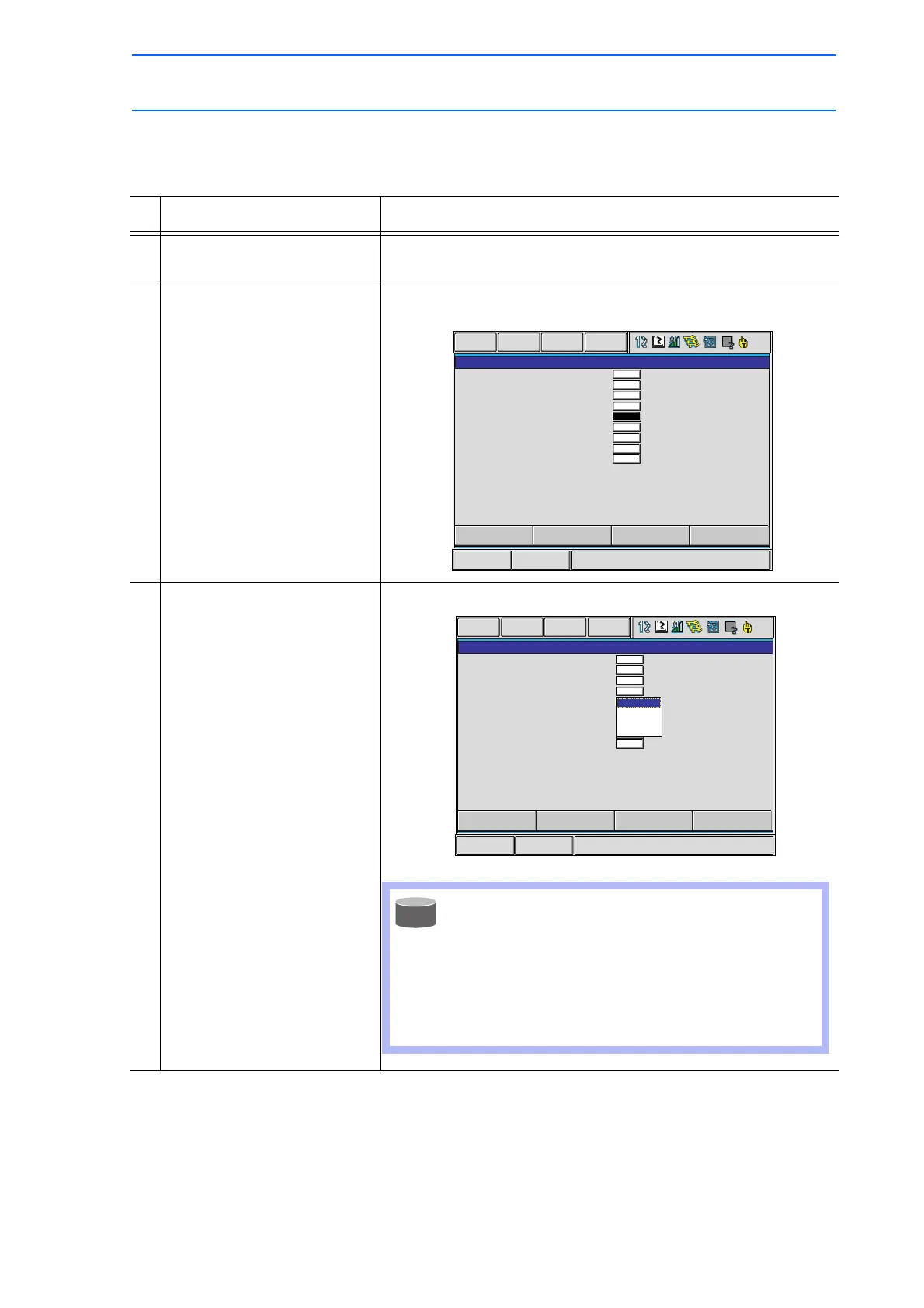

Automatic Setting for Operation Cycle
Automatic setting of the operation cycle can be changed by the following operation.
This can be done in the management mode only.
Operation Explanation
1 Select {SETUP} under the
main menu.
2 Select {OPERATE COND}. The OPERATING CONDITION window appears. Use the cursor
to scroll the screen.
3 Select desired operation. The selection dialog box appears.
Short Cut
Main Menu
OPERATING CONDITION
MASTER JOB CHANGE
RESERVED START
RESERVED START JOB CHANGE
SPEED DATA INPUT FORM
CYCLE SWITCH IN TEACH MODE
CYCLE SWITCH IN PLAY MODE
CYCLE SWITCH IN LOCAL MODE
CYCLE SWITCH IN REMOTE MODE
SET CYCLE ON POWER ON
PERMIT
PROHIBIT
PERMIT
cm/min
1 CYCLE
1 CYCLE
1 CYCLE
1 CYCLE
1 CYCLE
DATA EDIT DISPLAY
UTILITY
Short Cut
Main Menu
OPERATING CONDITION
MASTER JOB CHANGE
RESERVED START
RESERVED START JOB CHANGE
SPEED DATA INPUT FORM
CYCLE SWITCH IN TEACH MODE
CYCLE SWITCH IN PLAY MODE
CYCLE SWITCH IN LOCAL MODE
CYCLE SWITCH IN REMOTE MODE
SET CYCLE ON POWER ON
PERMIT
PROHIBIT
PERMIT
cm/min
1 CYCLE
1 CYCLE
1 CYCLE
1 CYCLE
1 CYCLE
DATA EDIT DISPLAY
UTILITY
STEP
1 CYCLE
CONTINUOUS
NONE
“NONE” setting
The operation cycle is not changed when “NONE”
is set.
For example, if the setting is “CYCLE SWITCH IN
TEACH MODE = NONE,” the operation cycle after
selecting the teach mode is the same as the one
before.
SUPPLE
-MENT
159 of 493
