YASKAWA NX100 User Manual

7 External Memory Devices
7.3 Operation Flow
7-19
149235-1CD
RE-CSO-A031

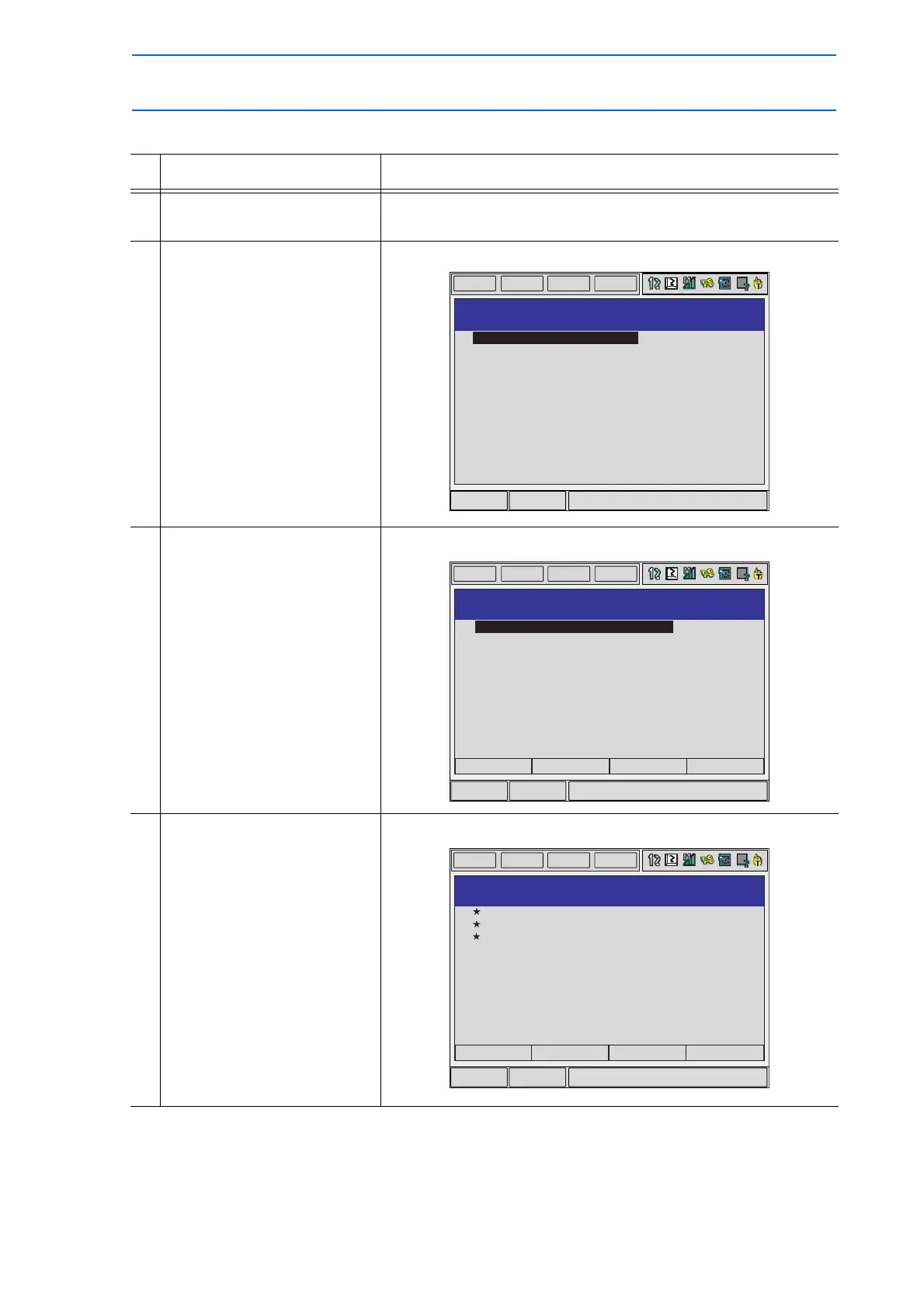

Saving a Parameter
Operation Explanation
1 Select {FD/PC CARD} under
the main menu.
2 Select {SAVE}. The following window appears.
3 Move the cursor to
{PARAMETER} and select.
The selection window for parameters appears.
4 Select parameters to be
saved.
The selected parameters are marked with “.”
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
FLOPPY DISK/Compact Flash
CF (SAVE) UN-USED MEMORY 55.91 MB
FOLDER
 JOB
 FILE/GENERAL DATA
 BATCH USER MEMORY
 PARAMETER
 SYSTEM DATA
 I/O DATA
 BATCH CMOS
 ALL CMOS AREA
57
0
0
0
0
0
0
0
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
 BATCH PARAMETER
 ROBOT MATCH PRMTR
 SYS DEF PRMTR
 COORD ORG PRMTR
 SYS MATCH PRMTR
 CIO PRMTR
 FCTN DEF PRMTR
 APPLI PRMTR
 TRANSMISSION (USER)
 SENSOR PRMTR
 SERVO PRMTR
ALL
RC
SD
RO
SC
CIO
FD
AP
RS
SE
SV
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
DATA UTILITY
EDIT
DISPLAY
Main Menu ShortCut
 BATCH PARAMETER
 ROBOT MATCH PRMTR
 SYS DEF PRMTR
 COORD ORG PRMTR
 SYS MATCH PRMTR
 CIO PRMTR
 FCTN DEF PRMTR
 APPLI PRMTR
 TRANSMISSION (USER)
 SENSOR PRMTR
 SERVO PRMTR
ALL
RC
SD
RO
SC
CIO
FD
AP
RS
SE
SV
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
.PRM
FLOPPY DISK/Compact Flash
CF(SAVE)
FOLDER
263 of 493
