YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-15
149235-1CD
RE-CSO-A031

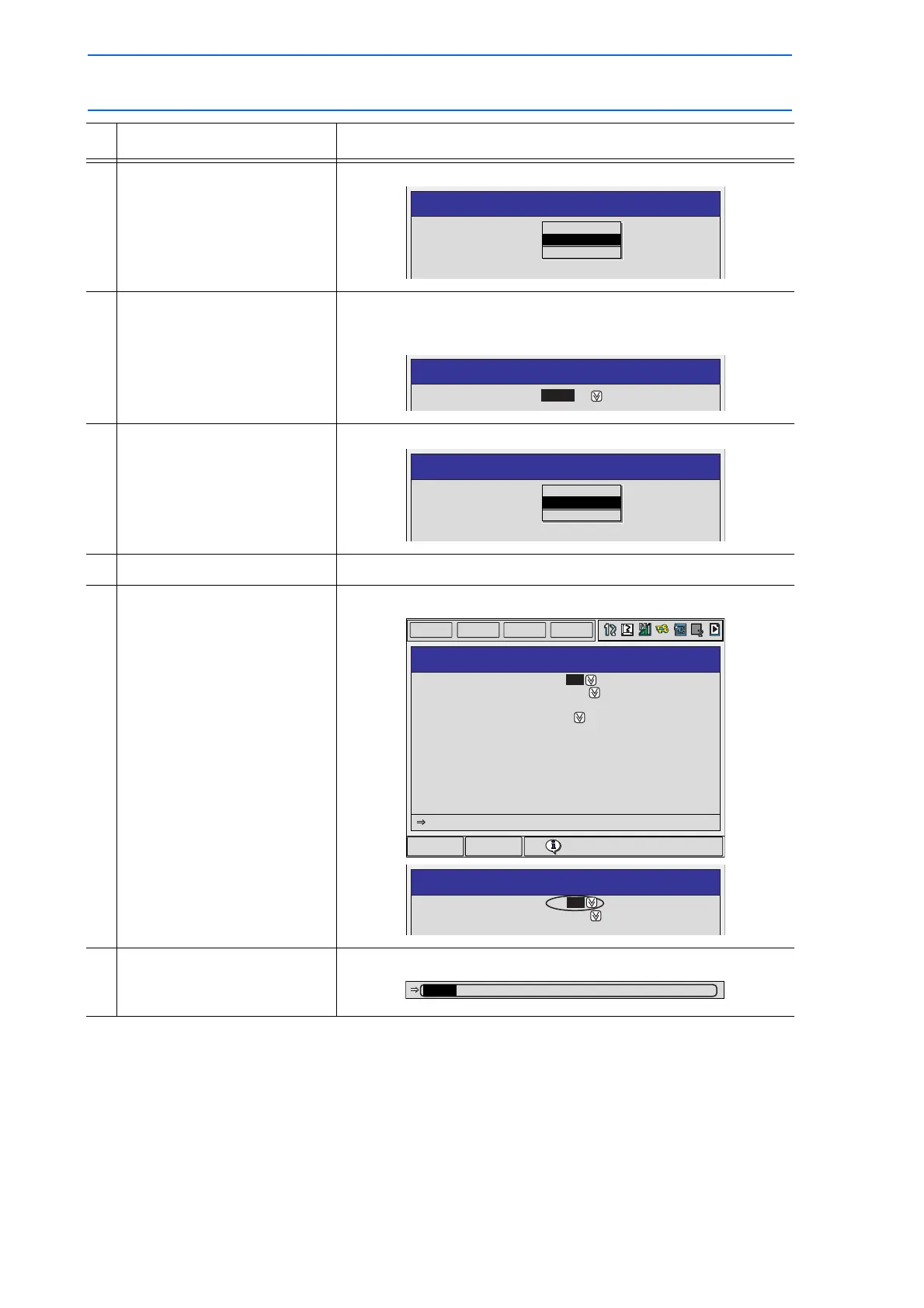

3 Select “UNUSED.” The selection dialog box appears.
4 Select “AC=.” When the welding conditions have been set in the ARCON
instruction with an arc start condition file, the DETAIL EDIT
window appears.
5 Select “ASF#( ).” The selection dialog box appears.
6 Select “AC=.”
7 Input the welding condition. Set each welding condition.
8 Press [ENTER]. The set contents are displayed in the input buffer line.
Operation Explanation
DETAIL EDIT
ARCON
SET METHOD
:
ASF#()
AC=
UNUSED
DETAIL EDIT
ARCON
SET METHOD
: ASF#() 1
DETAIL EDIT
ARCON
SET METHOD
:
ASF#()
AC=
UNUSED
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
DETAIL EDIT
ARCON
ARCON AC=180 AVP=100 V=80 RETRY REPLAY
: AC= 180
: AVP= 100
: T= 0.30
: V= 80
: RETRY
: REPLAY
WELDING CURR
WELDING VOLT
TIMER
SPEED
RETRY
MODE
DETAIL EDIT
ARCON
: AC= 200
: AVP= 100
: T= 0.30
WELDING CURR
WELDING VOLT
TIMER
ARCON AC=200 AVP=100 V=80 RETRY REPLAY
