9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-23
149235-1CD
RE-CSO-A031

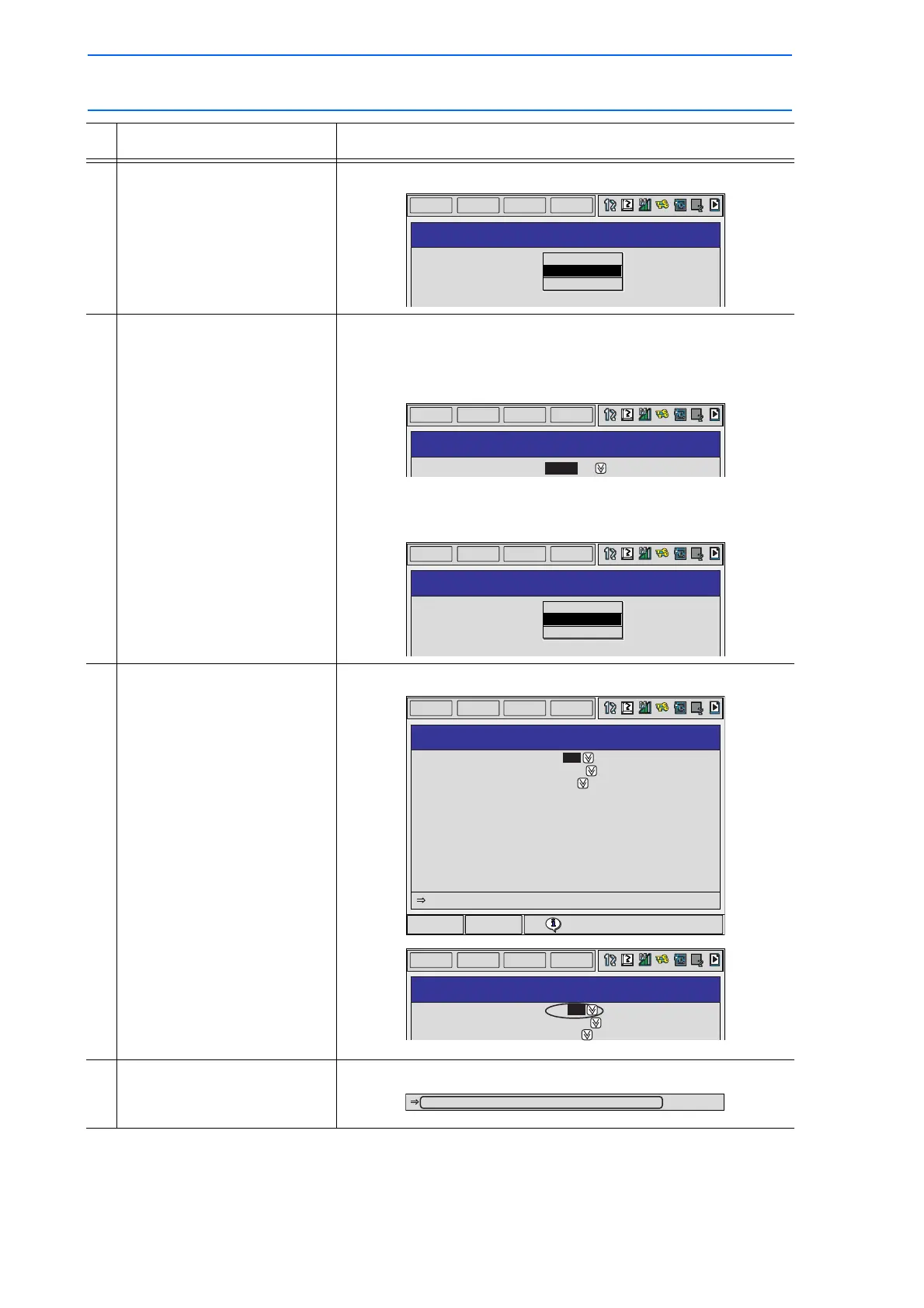

3 Select “UNUSED.” The selection dialog box appears.
4 Select “AC=.” When the welding conditions have been set in the ARCOF
instruction with arc end condition file, the DETAIL EDIT window
appears.
In such a case, select “AEF#( ).”
The selection dialog box appears.
Select “AC=.”
5 Input the welding condition. Set each welding condition.
6 Press [ENTER]. The set contents are displayed in the input buffer line.
Operation Explanation
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
SET METHOD
:
AEF#()
AC=
UNUSED
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
SET METHOD
: AEF#() 1
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
SET METHOD
:
AEF#()
AC=
UNUSED
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
DETAIL EDIT
ARCOF
ARCOF AC=180 AVP=100 T=0.30 ANTSTK
: AC= 180
: AVP= 100
: T= 0.30
: ANTSTK
WELDING CURR
WELDING VOLT
TIMER
ANTI-STICKING
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
: AC= 200
: AVP= 100
: T= 0.30
: ANTSTK
WELDING CURR
WELDING VOLT
TIMER
ARCOF AC=200 AVP=100 T=0.30 ANTSTK
