YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-28
149235-1CD
RE-CSO-A031
Without Additional Items

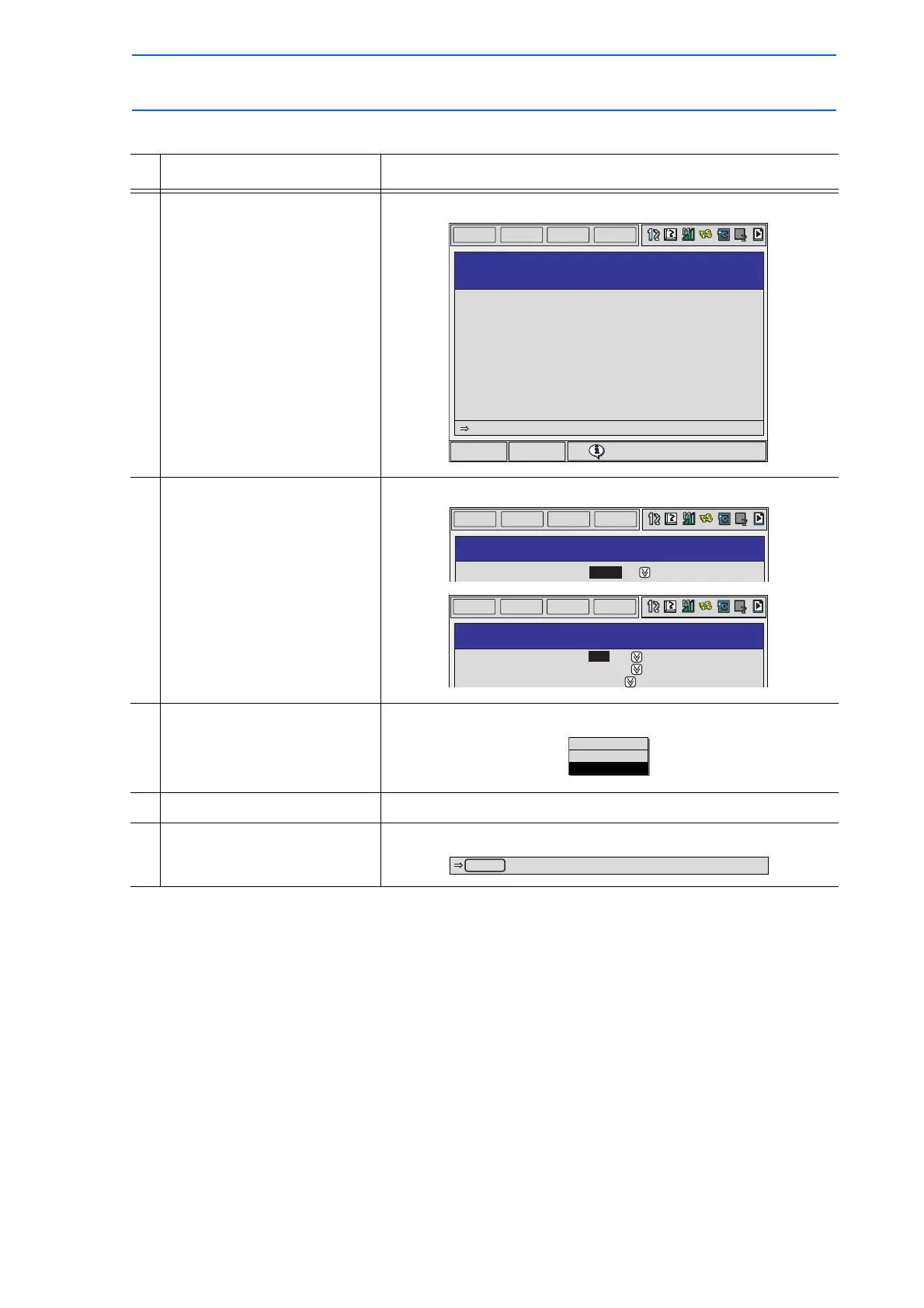

Operation Explanation
1 Select the ARCOF instruction
in the instruction area.
The ARCOF instruction appears in the input buffer line.
2 Press [SELECT]. The DETAIL EDIT window appears.
3 Select “AEF#( )” or “AC=.” The selection dialog box appears.
4 Select “UNUSED.”
5 Press [SELECT]. The set contents are displayed in the input buffer line.
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF AC=200 AVP=100 T=0.30 ANTSTK
0008 MOVL V=800
0009 MOVJ VJ=80.00
0010 END
ARCOF AC=200 AVP=100 T=0.30 ANTSTK
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
SET METHOD
: AEF#() 1
DATA
EDIT
DISPLAY
UTILITY
JOB CONTENT
A
DETAIL EDIT
ARCOF
: AC= 180
: AVP= 100
: T= 0.30
: ANTSTK
WELDING CURR
WELDING VOLT
TIMER
AEF#()
AC=
UNUSED
ARCOF
371 of 493
