9 Arc Welding Application
9.9 Displaying Welding Alarm History
9-69
149235-1CD
RE-CSO-A031

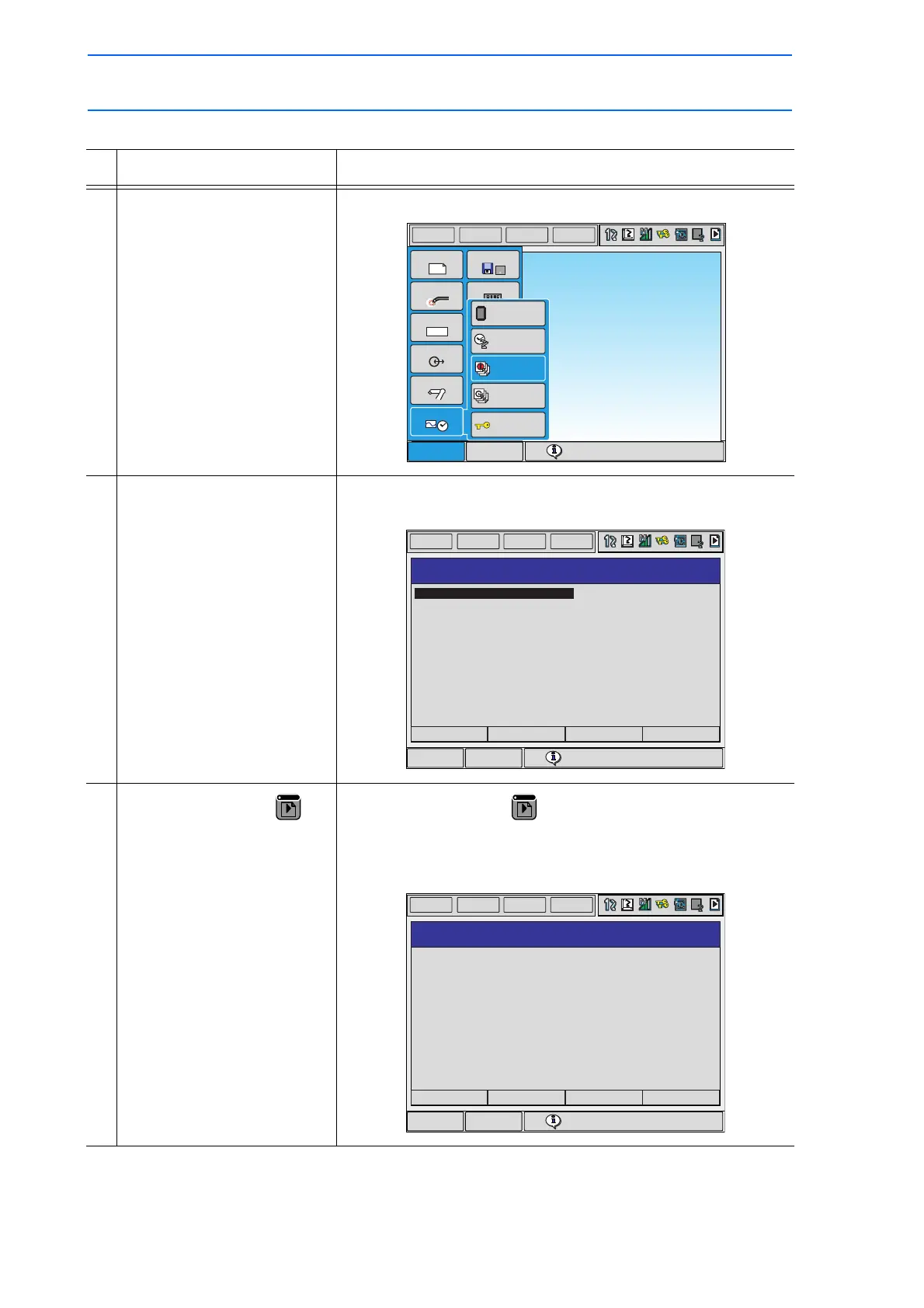

Operation Explanation
1 Select {SYSTEM INFO} under
the main menu.
The sub-menu for the system information appears.
2 Select {ALARM HISTORY}. The alarm history window appears. (The MAJOR ALARM window
is used for this example.)
3
Using the page key to
change the window.
Each time the page key is pressed, the window alternates
between
“MAJOR ALARM,” “MINOR ALARM,” “USER
ALARM (SYSTEM),” “USER ALARM (USER),” and “OFF-LINE
ALARM.”
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
Set tool mass data
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM INFO
VARIABLE
B001
ROBOT
PARAMETER
CF
FD/PC CARD
MONITORING TIME
ALARM HISTORY
IO MSG HISTORY
VERSION
SECURITY
ARC WELDING
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
MAJOR ALARM
CODE DATE CLOCK
01 1030 1998/05/12 12:00
02 0060 1998/06/15 15:25
03
04
05
06
07
08
Memory error (Parameter file)
[5]
JOB: TEST0001 Line: 0010 STEP: 010
PAGE
GO BACK
PAGE
GO BACK
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
!Turn on servo power
USER ALARM (USER)
CODE DATE CLOCK
01
02
03
04
05
06
07
08
09
10
11
