YASKAWA NX100 User Manual

3 Teaching
3.2 Teaching Operation
3-13
149235-1CD
RE-CSO-A031

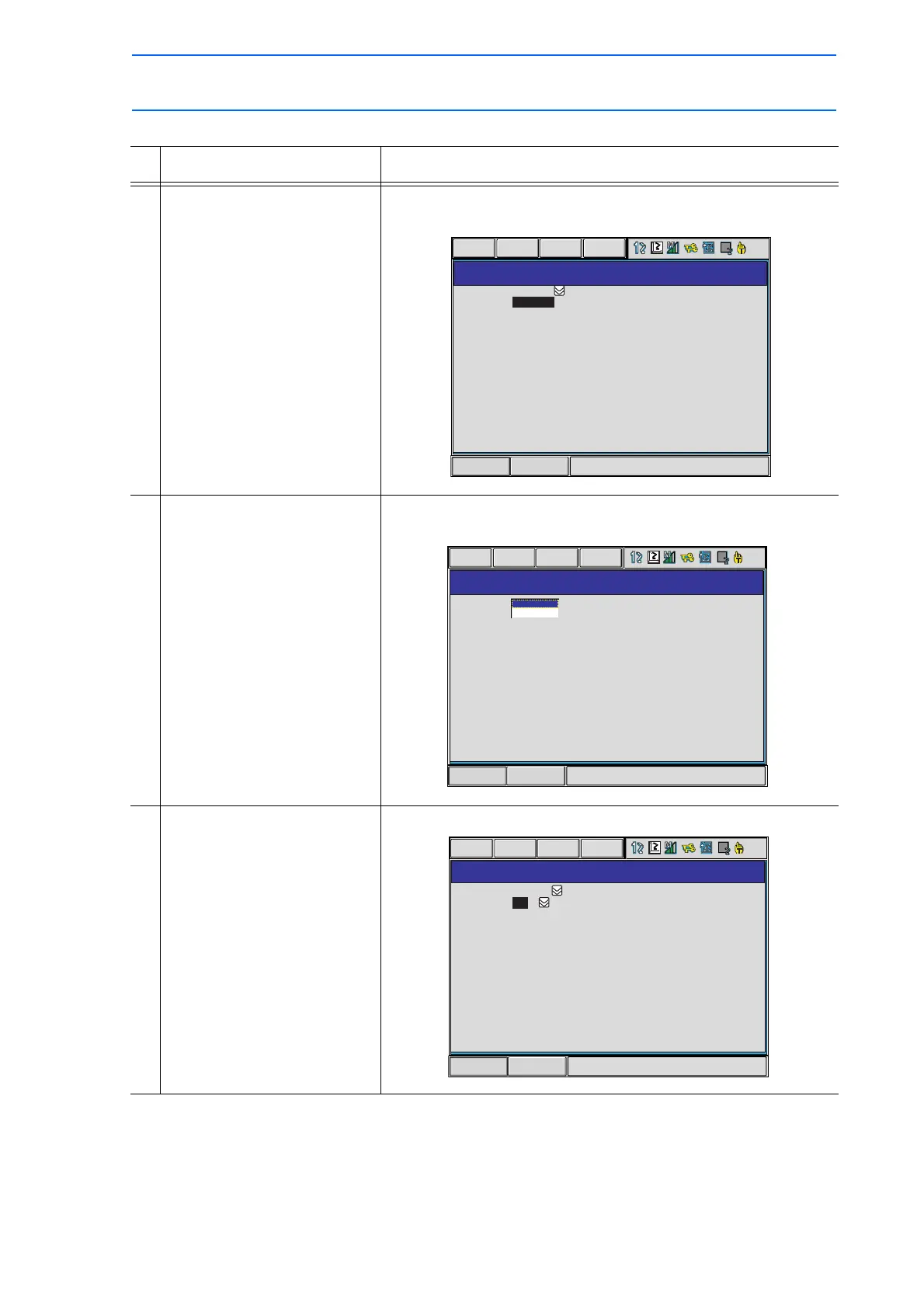

Operation Explanation
1 Select move instruction. The DETAIL EDIT window appears.
2 Select the position level
“UNUSED.”
The selection dialog box appears.
3 Select “PL.” The position level is displayed. The position initial value is 1.
Short Cut
Main Menu
JOINT SPEED VJ= 50.00
POS LEVEL UNUSED
NWAIT UNUSED
DETAIL EDIT
MOVJ
JOB
EDIT
DISPLAY
UTILITY
Short Cut
Main Menu
JOB
EDIT
DISPLAY
UTILITY
DETAIL EDIT
MOVJ
JOINT SPEED VJ= 50.00
POS LEVEL PL= 1
NWAIT UNUSED
PL
UNUSED
Short CutMain Menu
DETAIL EDIT
MOVJ
JOINT SPEED VJ= 50.00
POS LEVEL PL= 1
NWAIT UNUSED
JOB EDIT DISPLAY UTILITY
77 of 493

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
