3 Teaching
3.6 Editing Instructions
3-46
149235-1CD
RE-CSO-A031
5 (cont’d) • Changing the data type

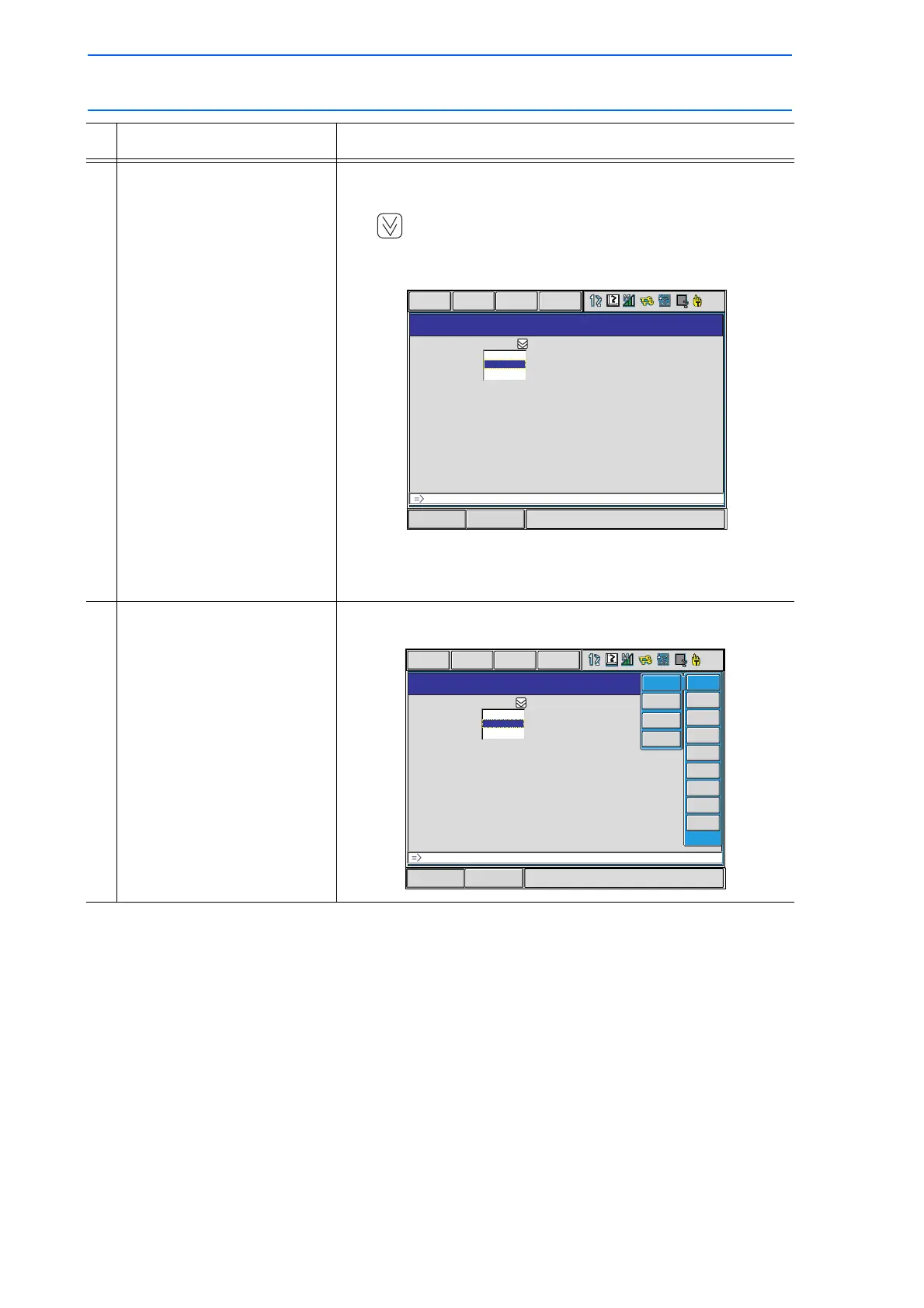

To change the data type of an additional item, move the cursor
to of the item and press [SELECT]. The data type list
appears. Select the desired data type.
After additional items have been added, modified, or deleted as
required, press [ENTER]. The DETAIL EDIT window closes and
the JOB CONTENT window appears.
6 Press [MODIFY] and
[ENTER].
The instruction is modified to the instruction displayed in the input
buffer line.
Operation Explanation
Short CutMain Menu
OUTPUT NO.
TIME
DETAIL EDIT
PULSE
OT#( ) 2
DATA EDIT
DISPLAY UTILITY
PULSE OT#(2)
CONSTANT
I
I[ ]
Short Cut
Main Menu
OUTPUT NO.
TIME
DETAIL EDIT
PULSE
OT#( ) 2
DATA EDIT DISPLAY
UTILITY
PULSE OT#(2)
CONSTANT
I
I[ ]
IN/OUT
CONTROL
DEVICE
MOTION
ARITH
SHIFT
OTHER
SAME
PRIOR
DOUT
DIN
WAIT
PULSE
