6 Convenient Functions
6.3 Parallel Shift Job Conversion Function
6-24
149235-1CD
RE-CSO-A031

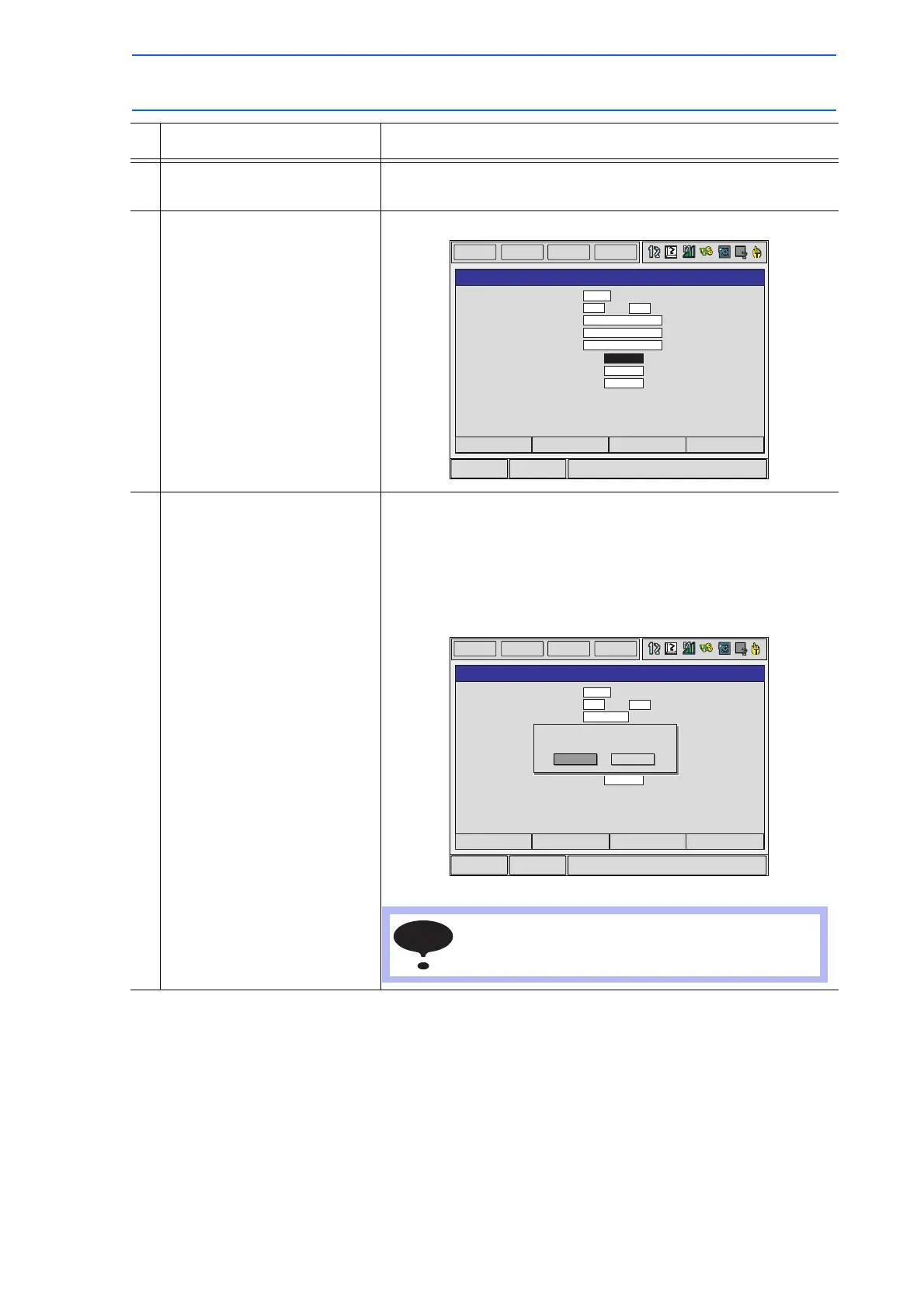

7 Type the shift value using the
Numeric keys.
8 Press [ENTER]. The shift value is set.
9 Display the PARALLEL SHIFT
JOB window.
Select “EXECUTE.”
The confirmation dialog box appears when the converted job is
not specified. Select “YES” then the conversion is executed. The
JOB CONTENT window appears when the conversion is
completed.
When “CANCEL“ is selected, the display goes back to the JOB
CONTENT window without executing conversion.
Operation Explanation
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
PARALLEL SHIFT JOB
SOURCE JOB
STEP SECTION
DESTINATION JOB
COORDINATES
BASE POINT
<SHIFT VALUE> R1:X
 Y
 Z
200.000
0
0
: JOB1
: 001 → 010
: JOB2
: ROBOT
: TEACH SETTING
EXECUTE
CANCEL
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
PARALLEL SHIFT JOB
SOURCE JOB
STEP SECTION
DESTINATION JOB
COORDINATES
BASE POINT
<SHIFT VALUE> R1:X
 Y
 Z
230.000
20.000
80.000
: JOB1
: 001 → 010
: JOB2
YES
Overwrite?
NO
EXECUTE
CANCEL
If an alarm occurs during conversion, conversion is
suspended.
NOTE
