YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-19
149235-1CD
RE-CSO-A031
Without Additional Items
When an additional item is not provided for the ARCON instruction, set the welding
conditions in advance with the welding condition setting instruction (ARCSET) before
executing the ARCON instruction. (Refer to “section 9.4.3 "ARCSET".”)

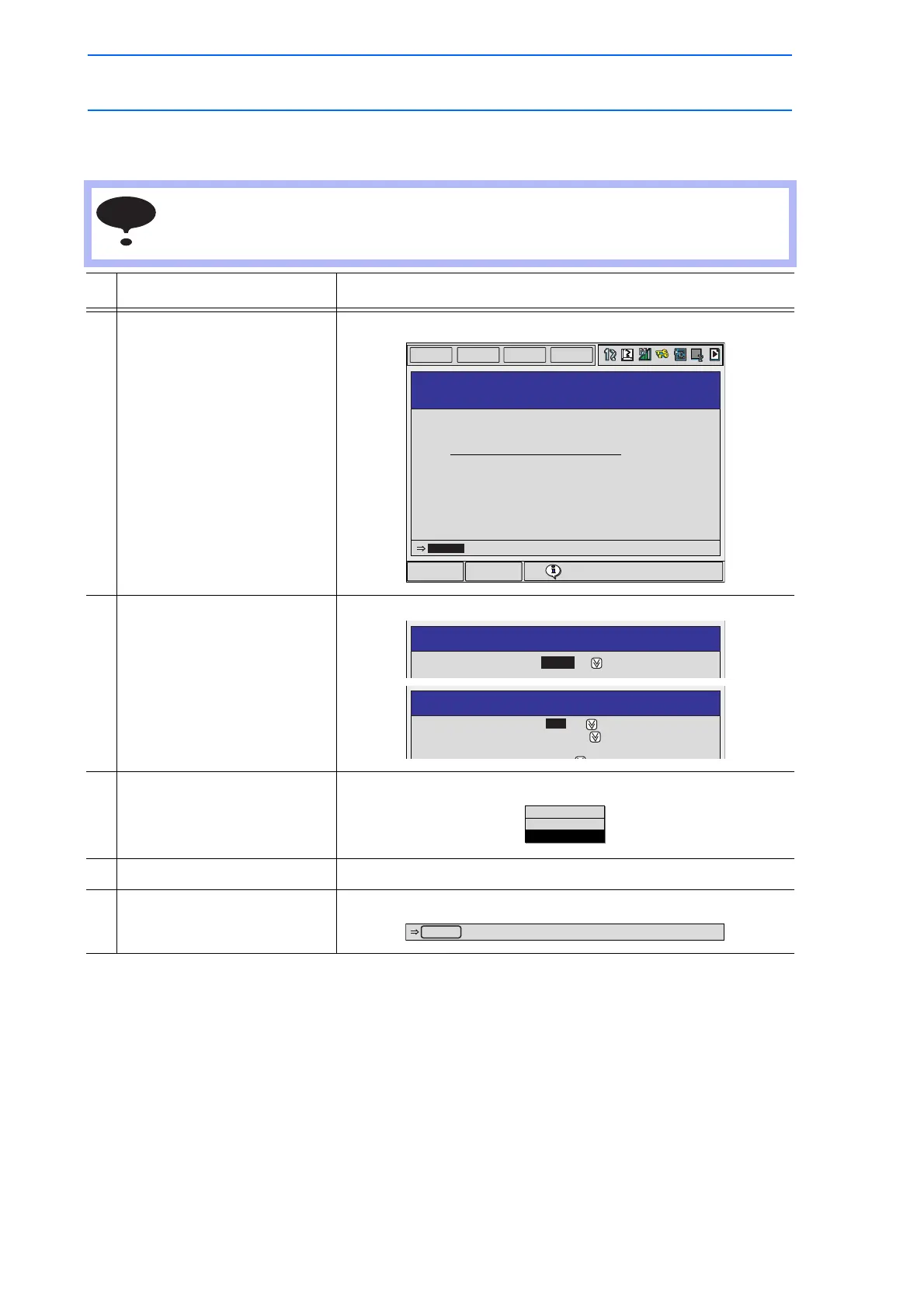

Operation Explanation
1 Select the ARCON instruction
in the instruction area.
The ARCON instruction appears in the input buffer line.
2 Press [SELECT]. The DETAIL EDIT window appears.
3 Select “ASF#( )” or “AC=.” The selection dialog box appears.
4 Select “UNUSED.”
5 Press [ENTER]. The set contents are displayed in the input buffer line.
NOTE
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003
ARCON ASF#(10) T=0.30 RETRY REPLAY
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF
0008 MOVL V=800
0009 MOVJ VJ=80.00
0010 END
ARCON ASF#(10) T=0.30 RETRY REPLAY
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
DETAIL EDIT
ARCON
SET METHOD
: ASF#() 1
DETAIL EDIT
ARCON
: AC= 180
: AVP= 100
: T= 0.30
V80
WELDING CURR
WELDING VOLT
TIMER
ASF#()
AC=
UNUSED
ARCON
362 of 493
