YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-18
149235-1CD
RE-CSO-A031

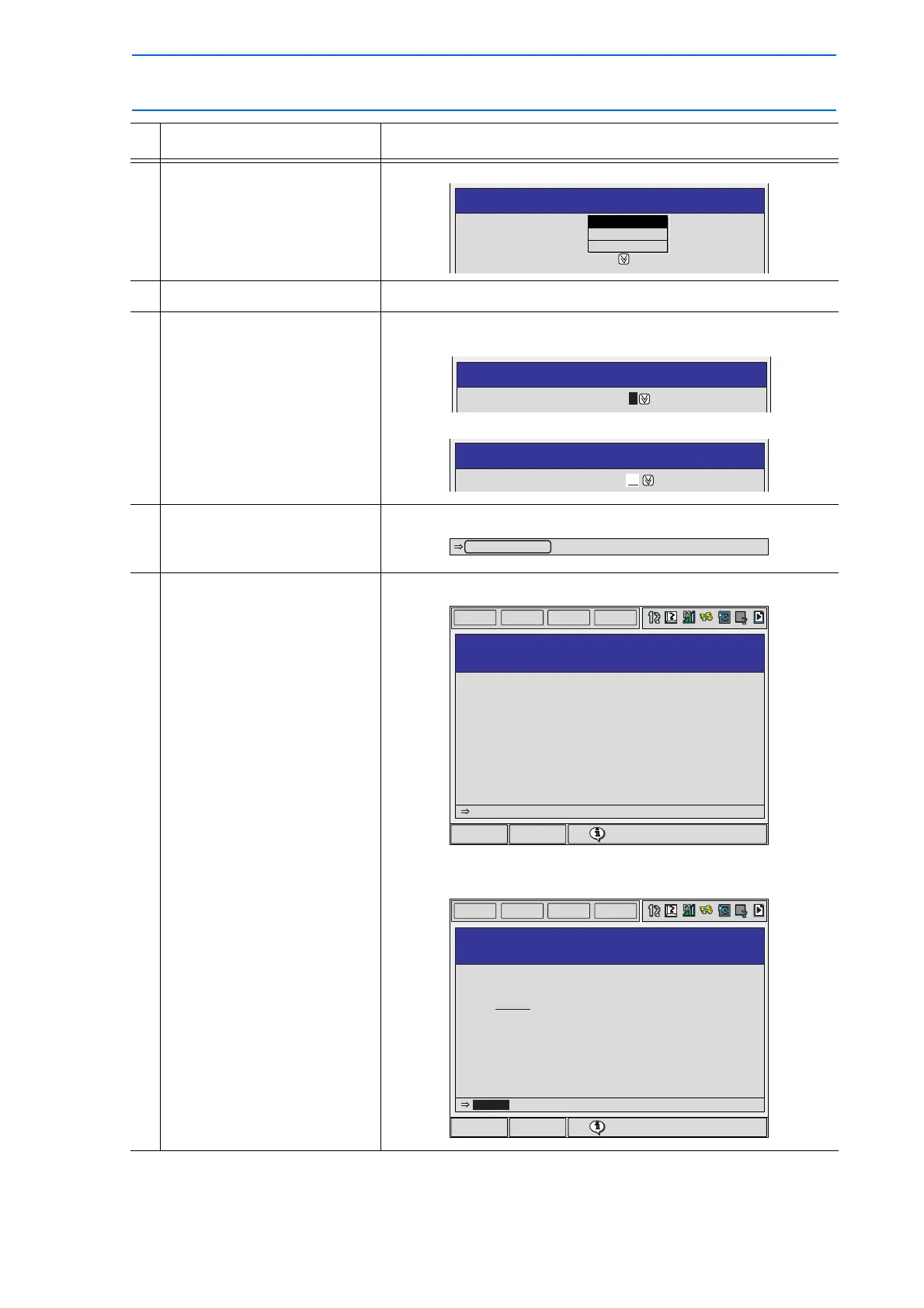

5 Select “AC=.” The selection dialog box appears.
6 Select “ASF#( ).”
7 Set the file number. Specify the file number (1 to 64). Move the cursor to the file
number and press [SELECT].
Type the file number using the Numeric keys and press [ENTER].
8 Press [ENTER]. The set contents are displayed in the input buffer line.
9 Press [ENTER]. The set contents are registered in the job.
Press [CANCEL] to return to the JOB CONTENT window when
the set contents are not to be registered.
Operation Explanation
: AC= 180
: AVP= 100
: T= 0.30
: V= 80
: RETRY
DETAIL EDIT
ARCON
WELDING CURR
WELDING VOLT
TIMER
SPEED
RETRY
ASF#()
AC=
UNUSED
DETAIL EDIT
ARCON
SET METHOD
: ASF#() 1
DETAIL EDIT
ARCON
SET METHOD
: ASF#() 10
ARCON ASF# (10)
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON ASF# (10)
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF
0008 MOVL V=800
0009 MOVJ VJ=80.00
0010 END
ARCON ASF# (10)
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 ARCOF
0008 MOVL V=800
0009 MOVJ VJ=80.00
0010 END
ARCON
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
361 of 493
