YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-25
149235-1CD
RE-CSO-A031
With an Arc End Condition File

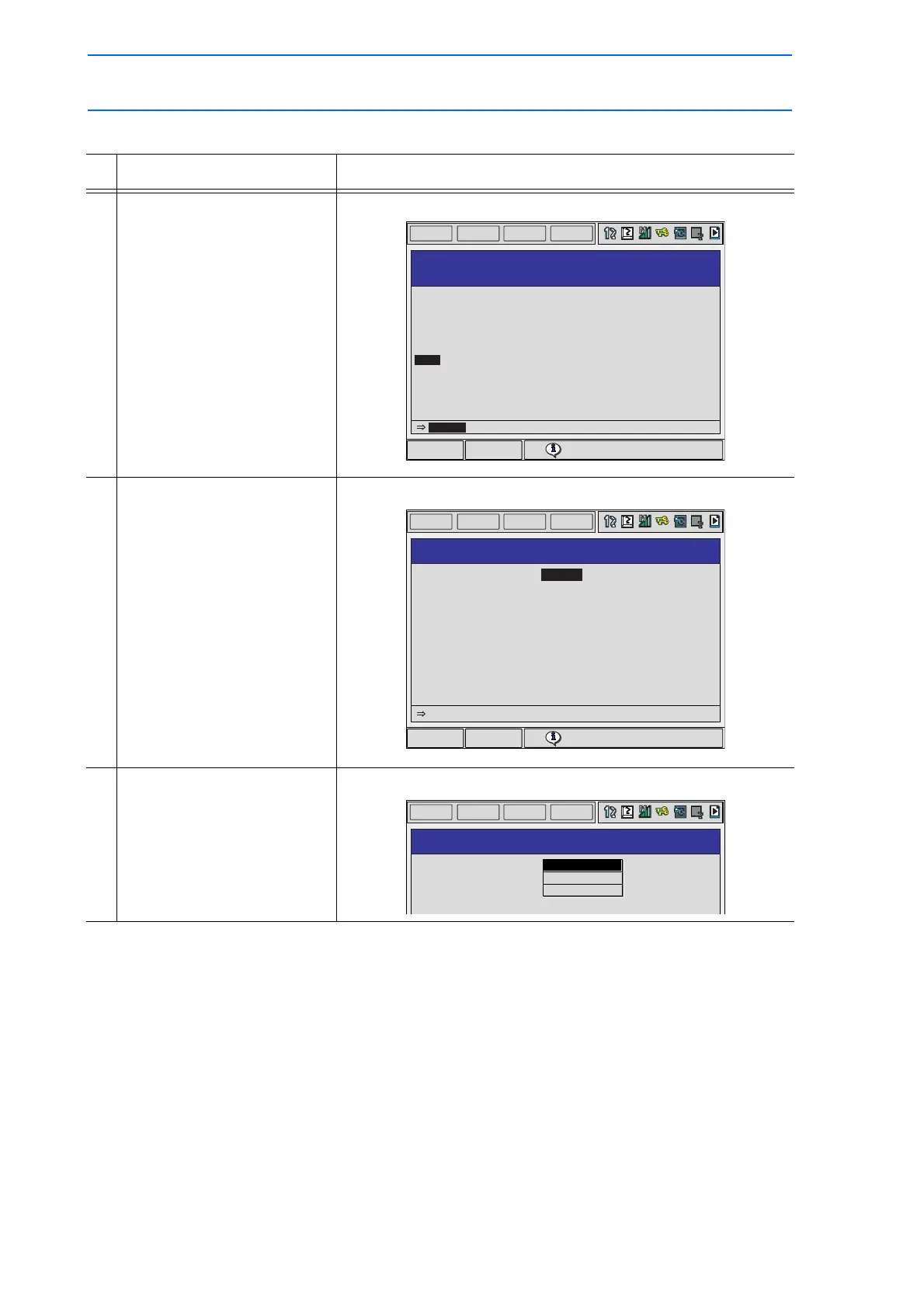

Operation Explanation
1 Select the ARCOF instruction
in the instruction area.
The ARCOF instruction appears in the input buffer line.
2 Press [SELECT]. The DETAIL EDIT window appears.
3 Select “UNUSED.” The selection dialog box appears.
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 MOVL V=50
0006 MOVL V=50
0007 END
ARCOF
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
DATA
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
DETAIL EDIT
ARCOF
ARCOF
SET METHOD
: UNUSED
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCOF
SET METHOD
:
AEF#()
AC=
UNUSED
368 of 493

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
