9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-26
149235-1CD
RE-CSO-A031

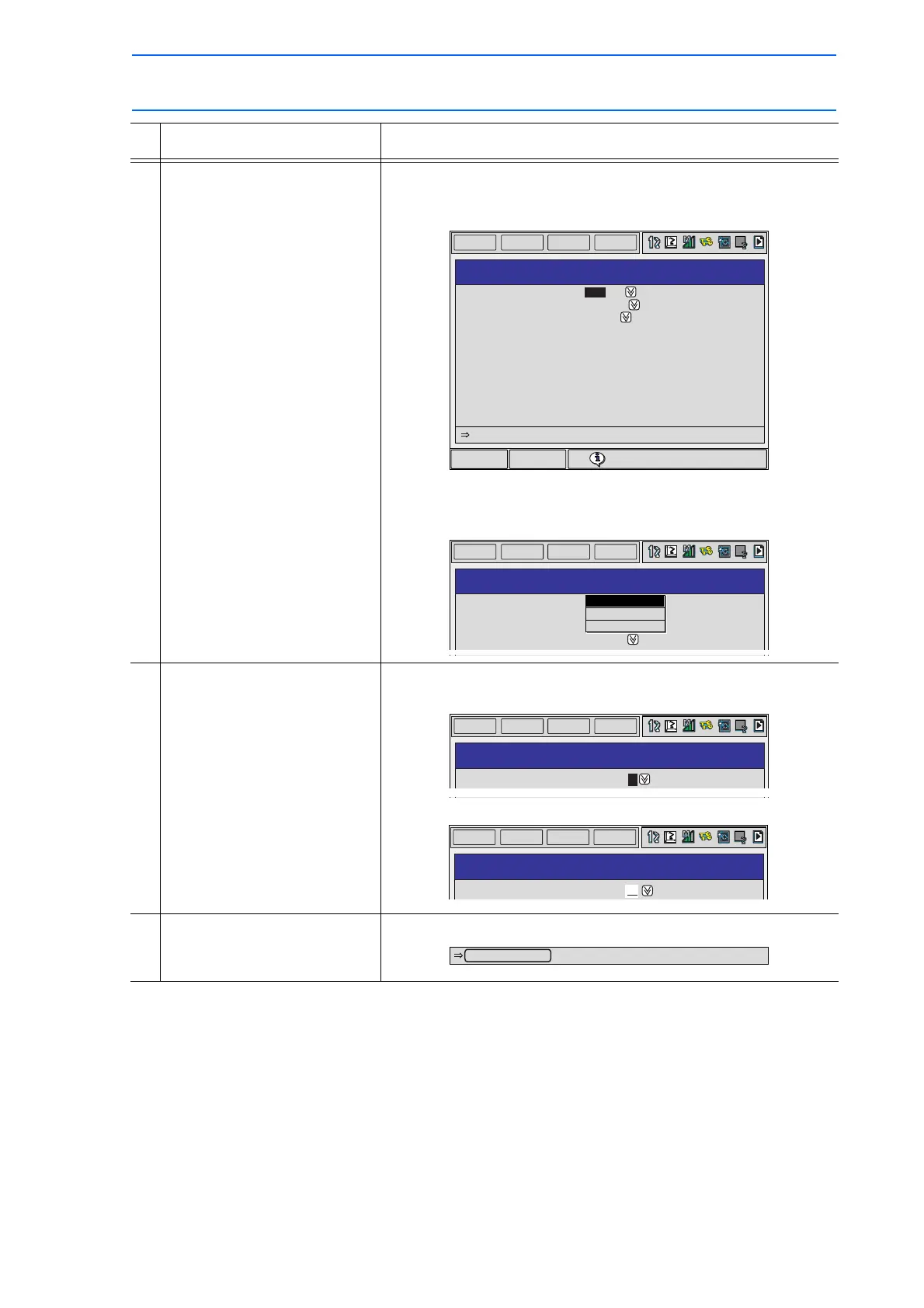

4 Select “AEF#( ).” When the welding conditions have been set in the ARCOF
instruction additional items, the DETAIL EDIT window appears.
In such a case, select “AC=”.
The selection dialog box appears.
Select “AEF#( ).”
5 Set the file number. Specify the file number (1 to 12). Move the cursor to the file
number and press [SELECT].
Type the file number using the Numeric keys and press [ENTER].
6 Press [ENTER]. The set contents are displayed in the input buffer line.
