9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-32
149235-1CD
RE-CSO-A031
8 Press [ENTER]. The set contents are registered in the job.
Press [CANCEL] to return to the JOB CONTENT window when
the set contents are not to be registered.

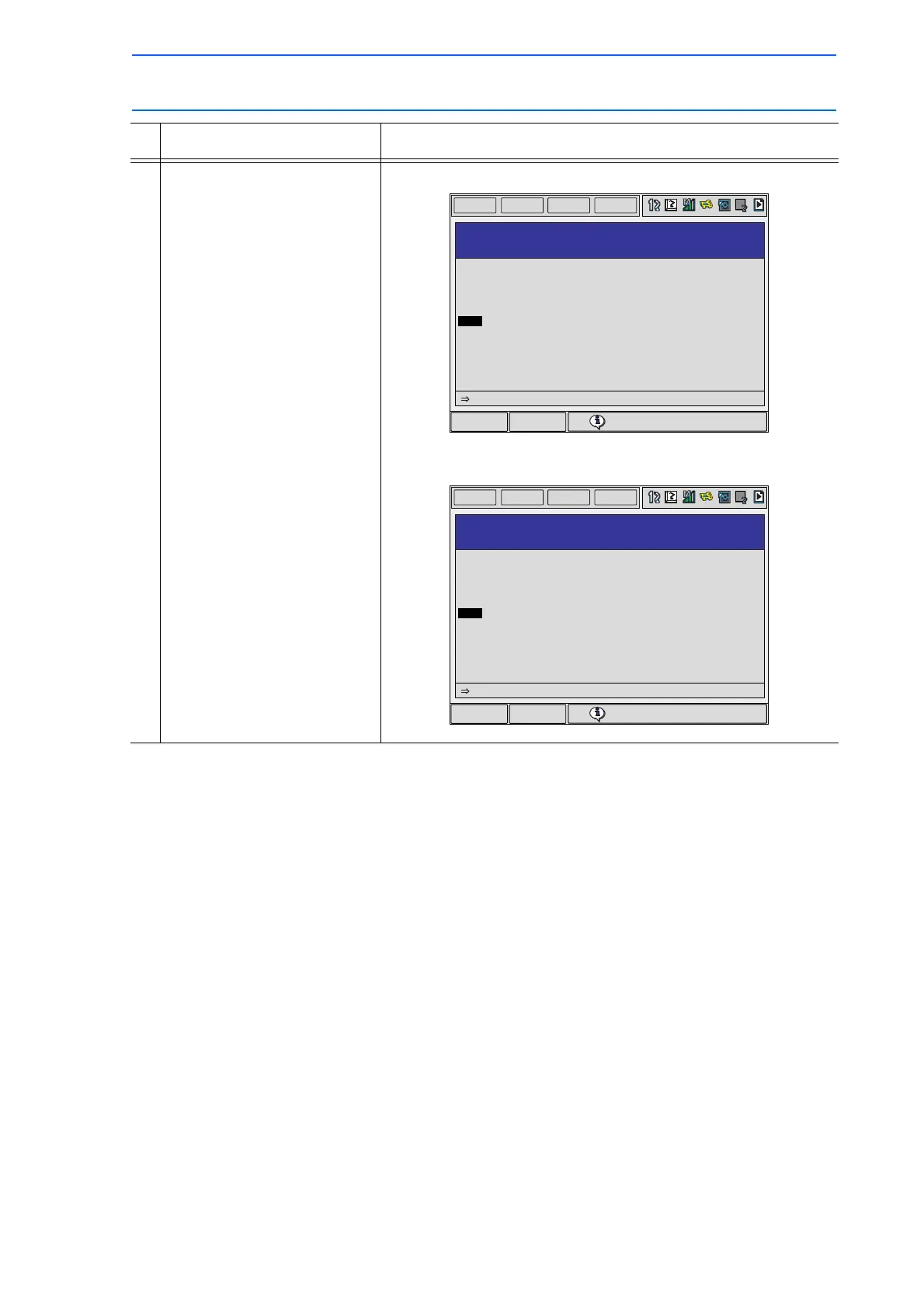

Operation Explanation
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
ARCSET AC=134 AVP=100
JOB NAME: WORK A
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 ARCCTS AC=134 AVP=100
0006 END
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
ARCSET AC=200 AVP=100
0000 NOP
0001 MOVJ VJ=80.00
0002 MOVL V=800
0003 ARCON
0004 MOVL V=50
0005 END
JOB CONTENT
JOB NAME: WORK A
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
