YASKAWA NX100 User Manual

9 Arc Welding Application
9.4 Registering Arc Welding Instructions
9-33
149235-1CD
RE-CSO-A031

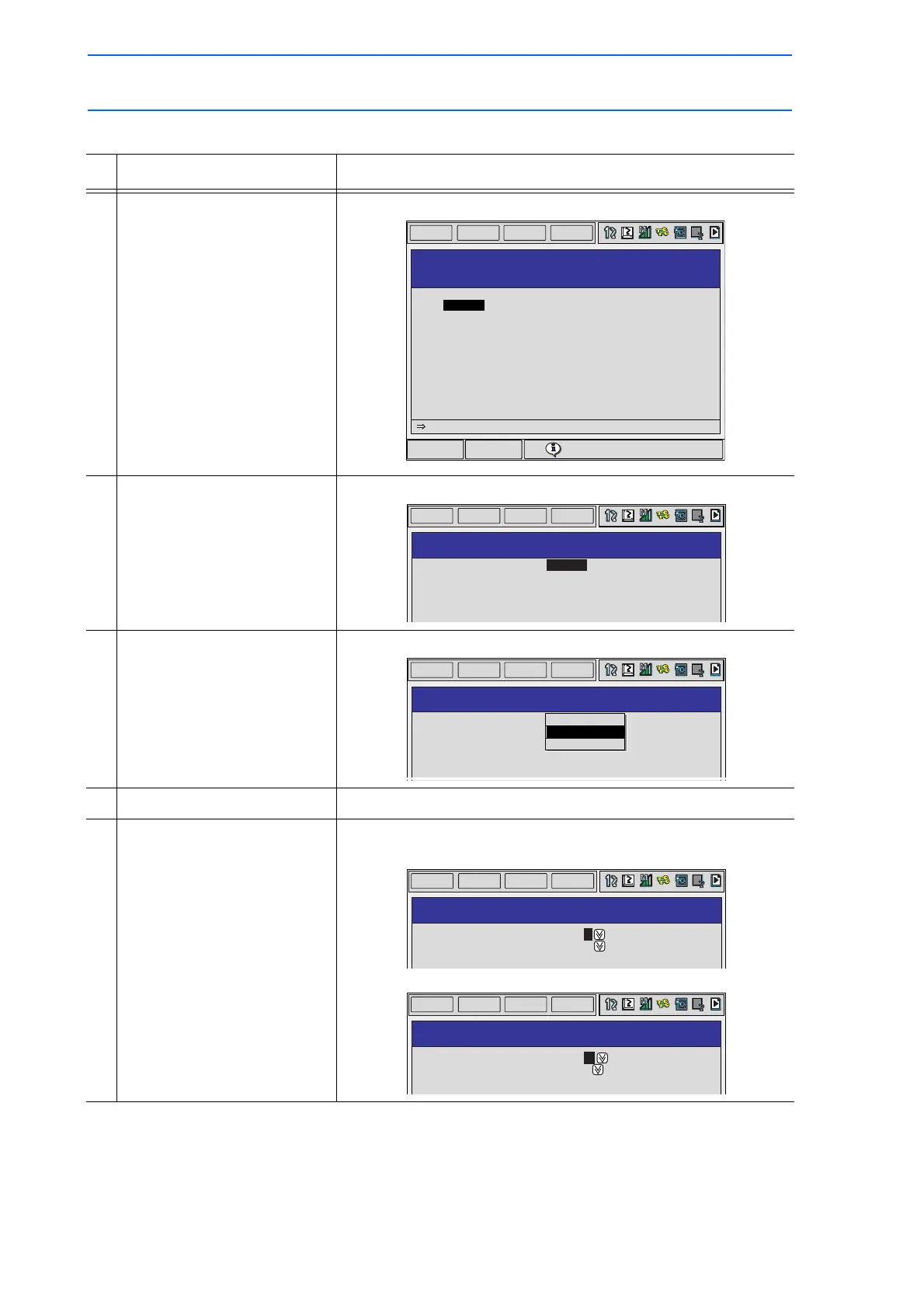

With an Arc Start Condition File
Operation Explanation
1 Select the ARCSET instruction
in the instruction area.
The ARCSET instruction appears in the input buffer line.
2 Press [SELECT]. The DETAIL EDIT window appears.
3 Select “UNUSED.” The selection dialog box appears.
4 Select “ASF#( )”.
5 Set the file number. Specify the file number (1 to 396). Move the cursor to the file
number and press [SELECT].
Type the file number using the Numeric keys and press [ENTER].
JOB
EDIT
DISPLAY
UTILITY
Main Menu ShortCut
! Turn on servo power
JOB CONTENT
JOB NAME: WORK A
ARCSET
TOOL: 00
CONTROL GROUP: R1
STEP NO: 0003
0007 MOVL V=100
0008 ARCSET
0009 MOVL V=100
0010 ARCOF AC=100 AVP=100 ANTSTK
0011 MOVJ VJ=5.00
0012 MOVJ VJ=5.00
0013 MOVJ VJ=5.00
0014 END
: UNUSED
: UNUSED
: UNUSED
: UNUSED
: UNUSED
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCSET
WELDING CURR
WELDING VOLT
SPEED
ANALOG OUTPUT3
ANALOG OUTPUT4
: UNUSED
: UNUSED
: UNUSED
: UNUSED
: UNUSED
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCSET
WELDING CURR
WELDING VOLT
SPEED
ANALOG OUTPUT3
ANALOG OUTPUT4
AC=
ASF#()
UNUSED
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCSET
SET METHOD
CONDITION SET
: ASF#() 1
: ACOND=0
DATA
EDIT
DISPLAY
UTILITY
DETAIL EDIT
ARCSET
SET METHOD
CONDITION SET
: ASF#() 10
: ACOND=0
