YASKAWA NX100 User Manual

9 Arc Welding Application
9.11 Weaving Condition File
9-74
149235-1CD
RE-CSO-A031

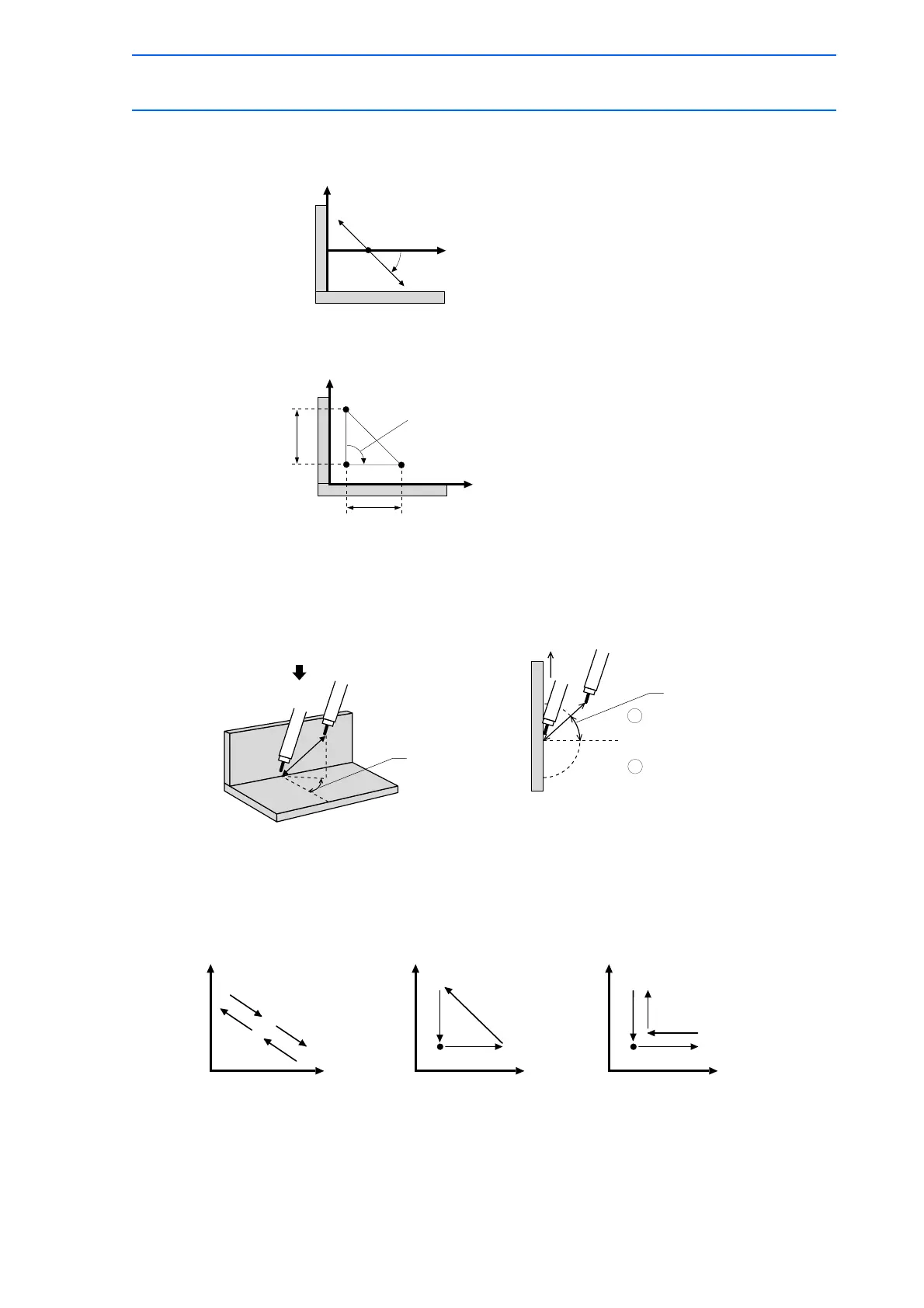

• ANGLE
Specifies the oscillation angle.
• TRAVEL ANGLE
Specifies the direction of travel for oscillation.
TIMER (MODE)
As shown below, a single weaving cycle is divided into three or four sections. A timer mode
can be specified for each section.
Angle
Angle : 0.1 to 180.0°
MODE: SINGLE
Wall direction
Horizontal
direction
Wall direction
Angle
Horizontal direction
MODE: TRIANGLE, L-TYPE
Vertical
distance
Horizontal
distance
Angle: 0.1 to 180.0°
Travel angle
View A
0
+
-
Direction of travel
Travel angle
View A



Single
oscillation
Triangle
oscillation
L-type
oscillation
Wall direction
Horizontal
direction
Wall direction
Horizontal
direction
Wall direction
Horizontal
direction








417 of 493
