TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
101
Basic hardware procedures
4.11.1.2 Rack server (RX2560 M2)

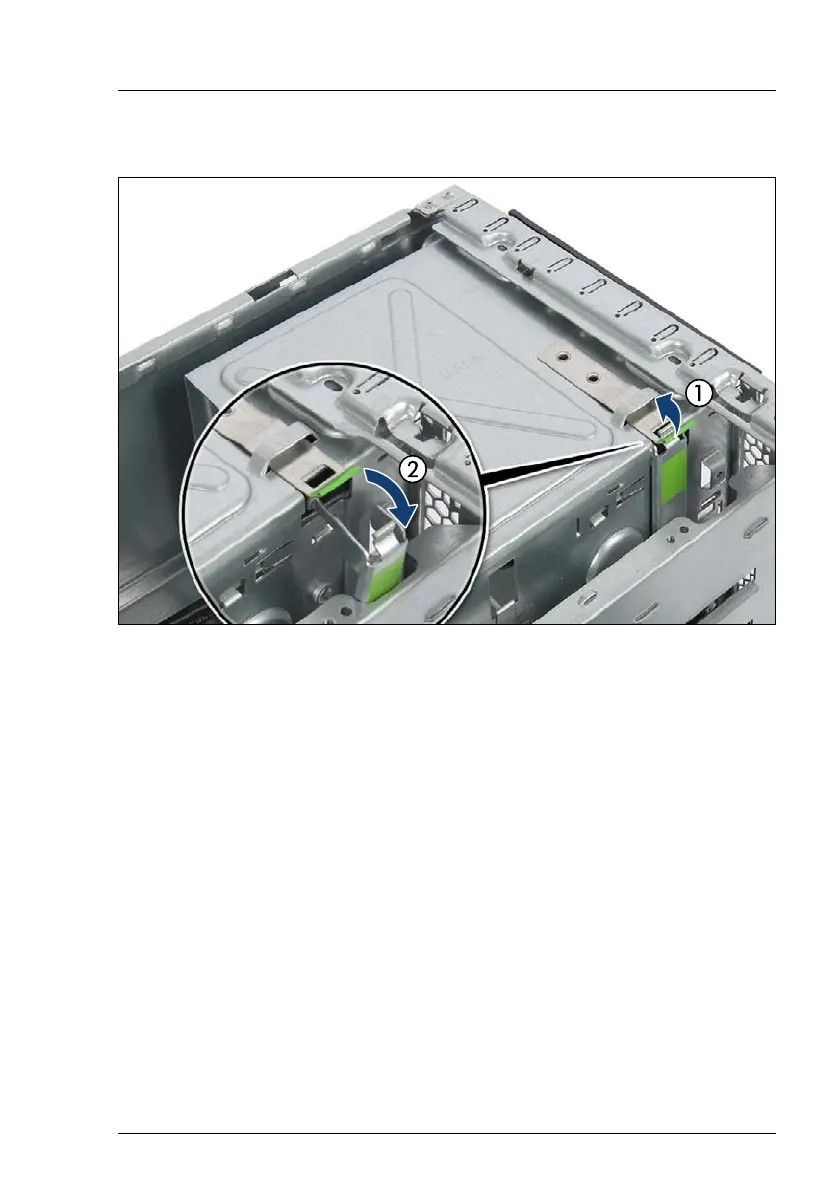

Figure 52: Opening the accessible drive locking bar (rack server)
Ê
Pull up the locking latch to disengage the accessible drive locking bar (1).
Ê
Fold out the accessible drive locking bar (2).
