Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

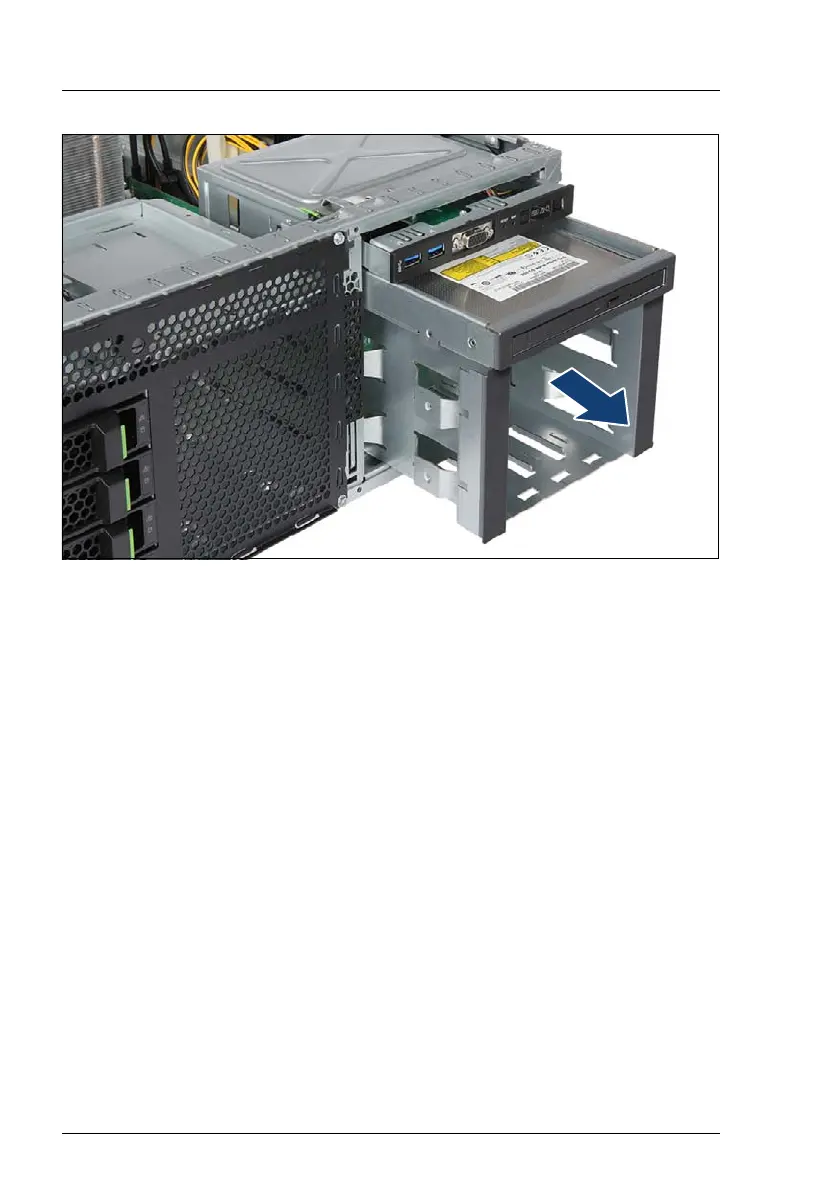

Figure 163: Removing the HDD extension box
Ê
Carefully pull the 4x 3.5-inch HDD extension box out of its installation bays.
Ê
Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
7.4.6.3 Installing accessible drive dummy covers
Ê
Install accessible drive filler covers into empty drive bays as described in
section "Installing accessible drive filler covers" on page 105.
Ê
Install accessible drive covers into the front cover as described in section
"Installing accessible drive covers" on page 107.
