TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 275
Hard disk drive (HDD) / solid state drive (SSD)
7.7.1.4 Connecting cables to the expander board
2.5-inch HDD/SSD configurations

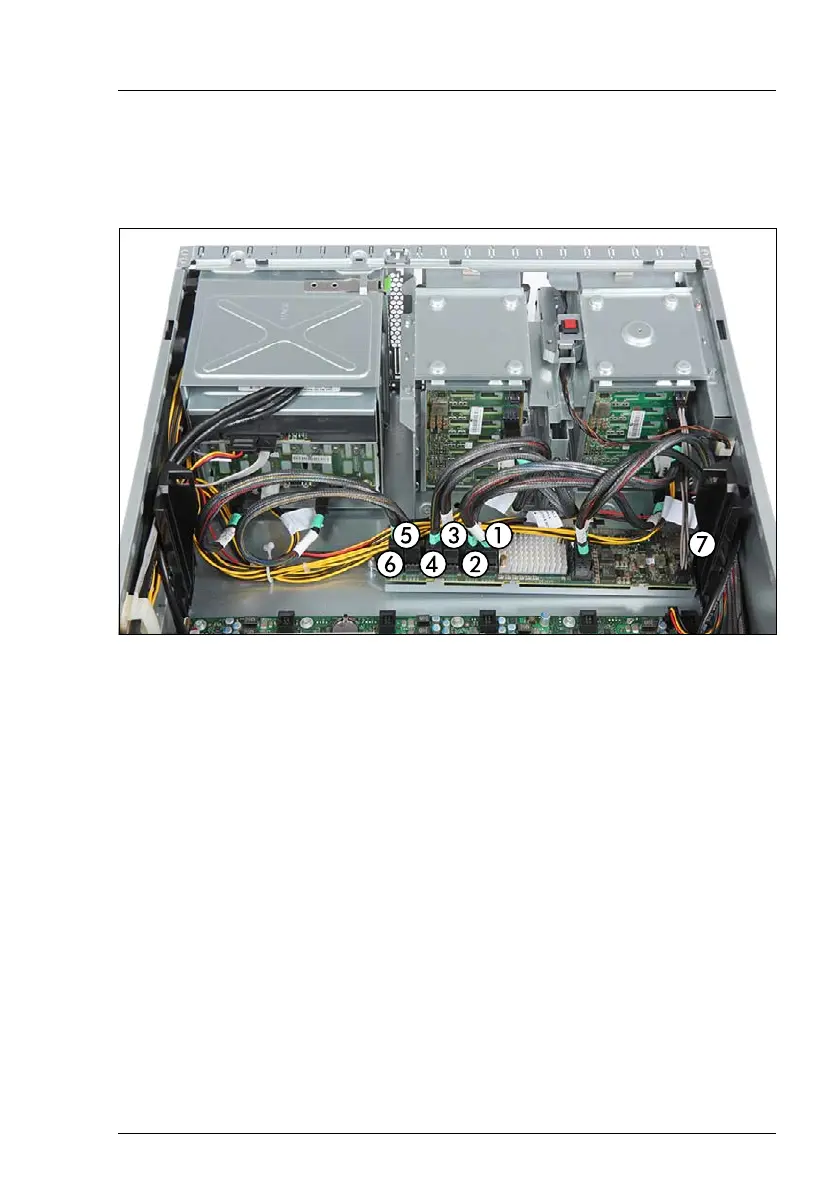

Figure 190: Connecting cables to expander board
Ê If applicable, connect SAS cables to the expander board:
– (1) from backplane 1 connector X9 to expander board connector X10
– (2) from backplane 1 connector X10 to expander board connector X11
– (3) from backplane 2 connector X9 to expander board connector X12
– (4) from backplane 2 connector X10 to expander board connector X13
– (5) from backplane 3 connector X9 to expander board connector X14
– (6) from backplane 3 connector X10 to expander board connector X15
– (7) from backplane 1 connector X17 to expander board connector X3
