Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
7.3.12.5 Installing the 3.5-inch HDD bay top cover

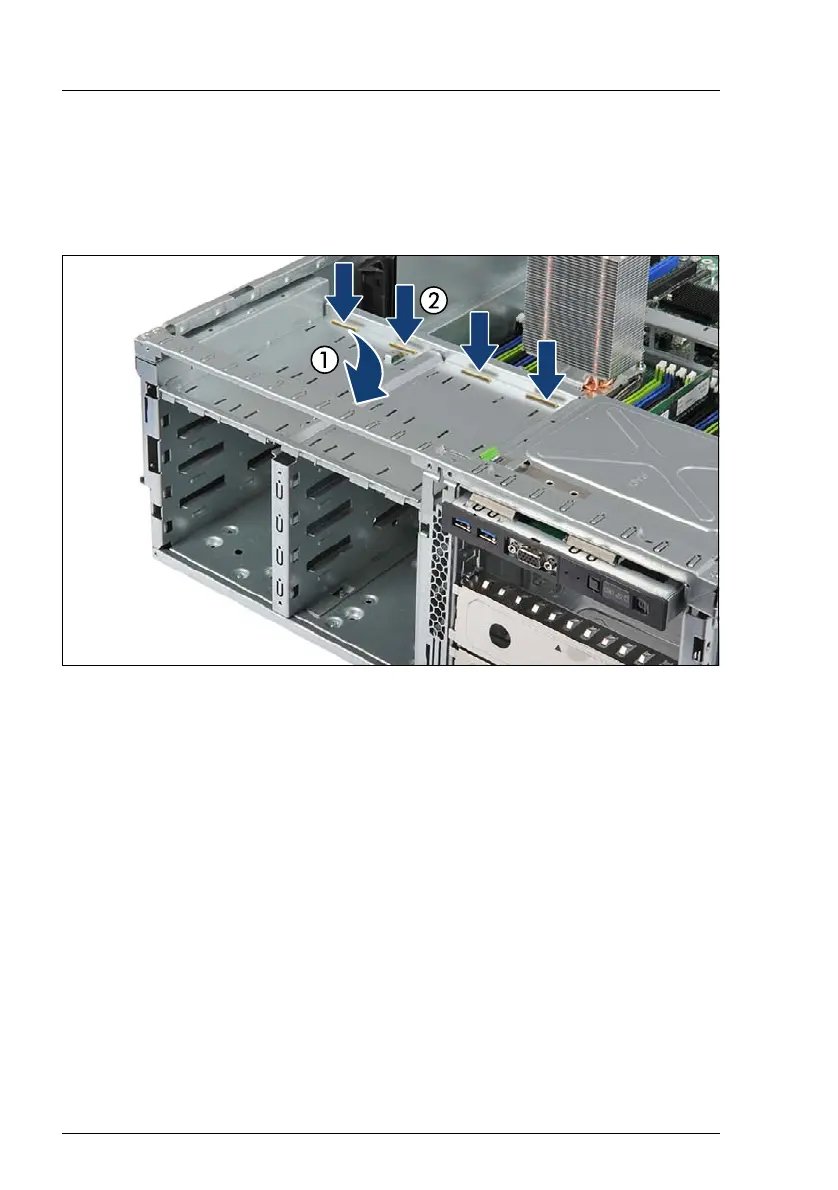

Figure 142: Installing the 3.5-inch HDD bay top cover (A)
Ê
Lower the 3.5-inch HDD bay top cover onto the HDD bays (1).
Ê
Place the 3.5-inch HDD bay top cover on the latches of the 4x 3.5-inch HDD
SAS backplane (2).
V CAUTION!
Ensure that the latches of the 4x 3.5-inch HDD SAS backplane are
properly seated in the openings in the HDD bay top cover.
