17.3 Onboard settings

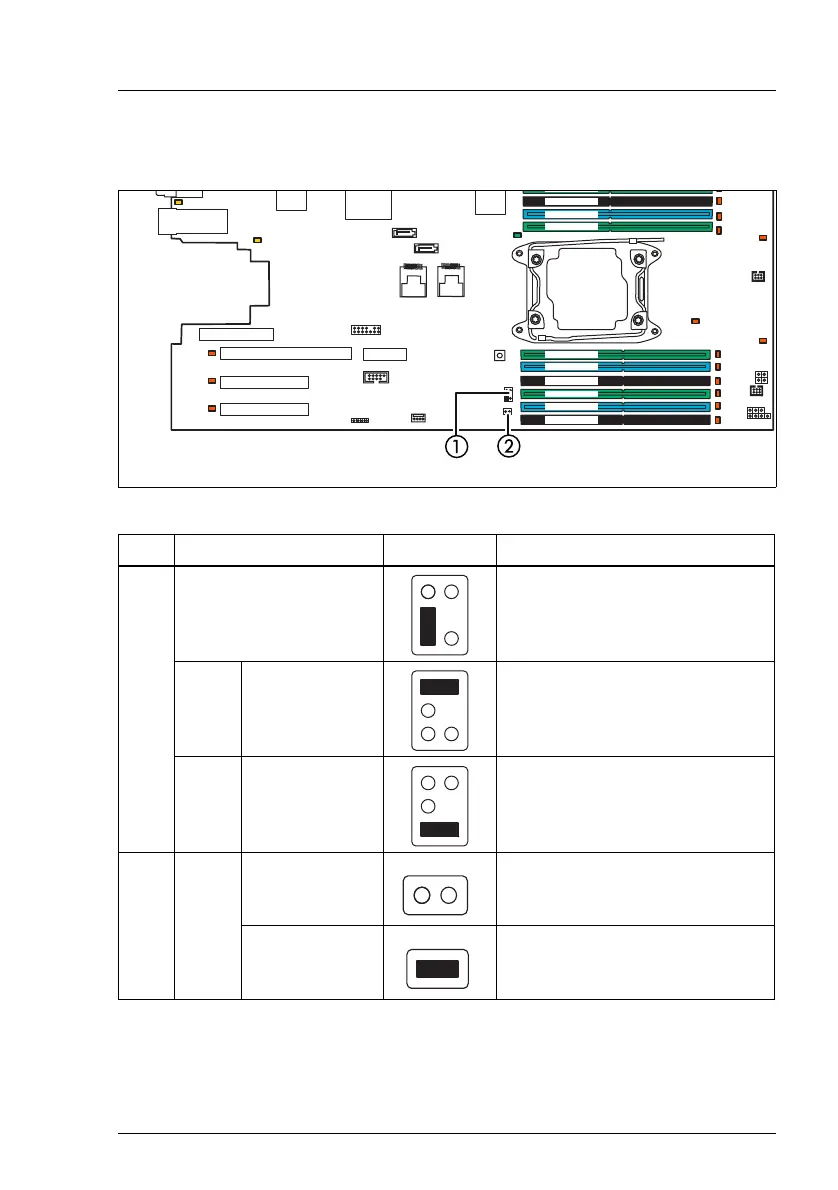

Figure 432: Jumper settings on system board D3289
Pos. Setting Status Description
1
Default
Password inquiry is enabled,
recovery BIOS options are
disabled
JP1 PWD CLR
Password skip is enabled
Password inquiry is skipped
permanently.
JP2 BIOS-RCVR Recovery BIOS is enabled
2JP3
Default Default
BIOS Flash
Write Protect
BIOS flash write protect is
enabled
iRMC
external connectors
HDD LED
INDICATE
LDL
Intrusion
TPM
Management LAN
USB 3/4
SLOT 3 PCIe x16 Riser 1
SLOT 2 PCIe x8
SLOT 1 (RAID)PCIe x8
PCH
1
JP1
JP3
FAN 2
FAN 1
SATA5
SATA6 DOM
2
Riser 1
SATA 1-4
UFM
CPU 1 DIMM 3D
CPU 1
CPU 1 DIMM 2D
CPU 1 DIMM 1D
CPU 1 DIMM 3C
CPU 1 DIMM 2C
CPU 1 DIMM 1C
CPU 1 DIMM 3A
CPU 1 DIMM 1B
CPU 1 DIMM 2B
CPU 1 DIMM 3B
BIOS
Flash
I2C5
PWR ODD
Dyn LoM
SATA 7-10
JP2
