TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
323
Expansion cards and backup units

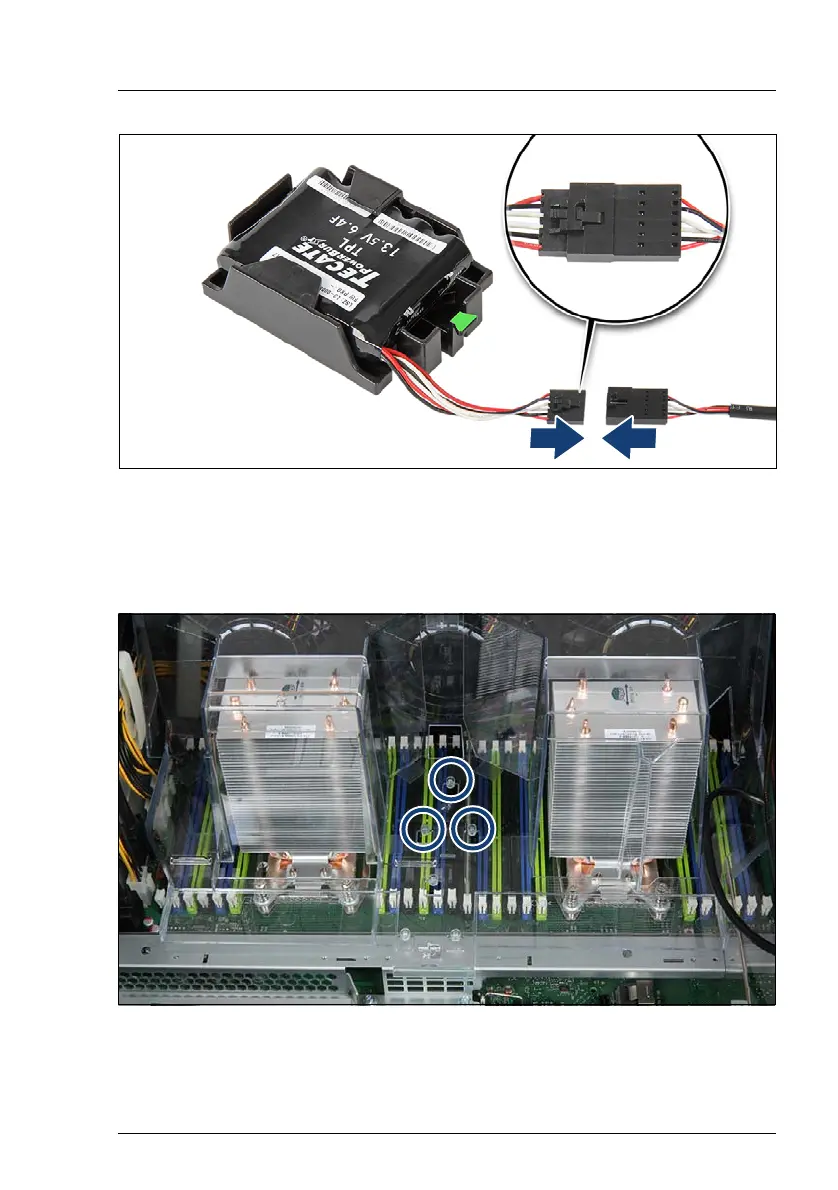

Figure 229: Connecting the FBU adapter cable to the FBU
Ê
Connect the cable end on the FBU module to the FBU adapter cable.
9.4.2.4 Installing the FBU
Figure 230: Position of the shoulder screw caps - example FBU 1
