TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
273
Hard disk drive (HDD) / solid state drive (SSD)

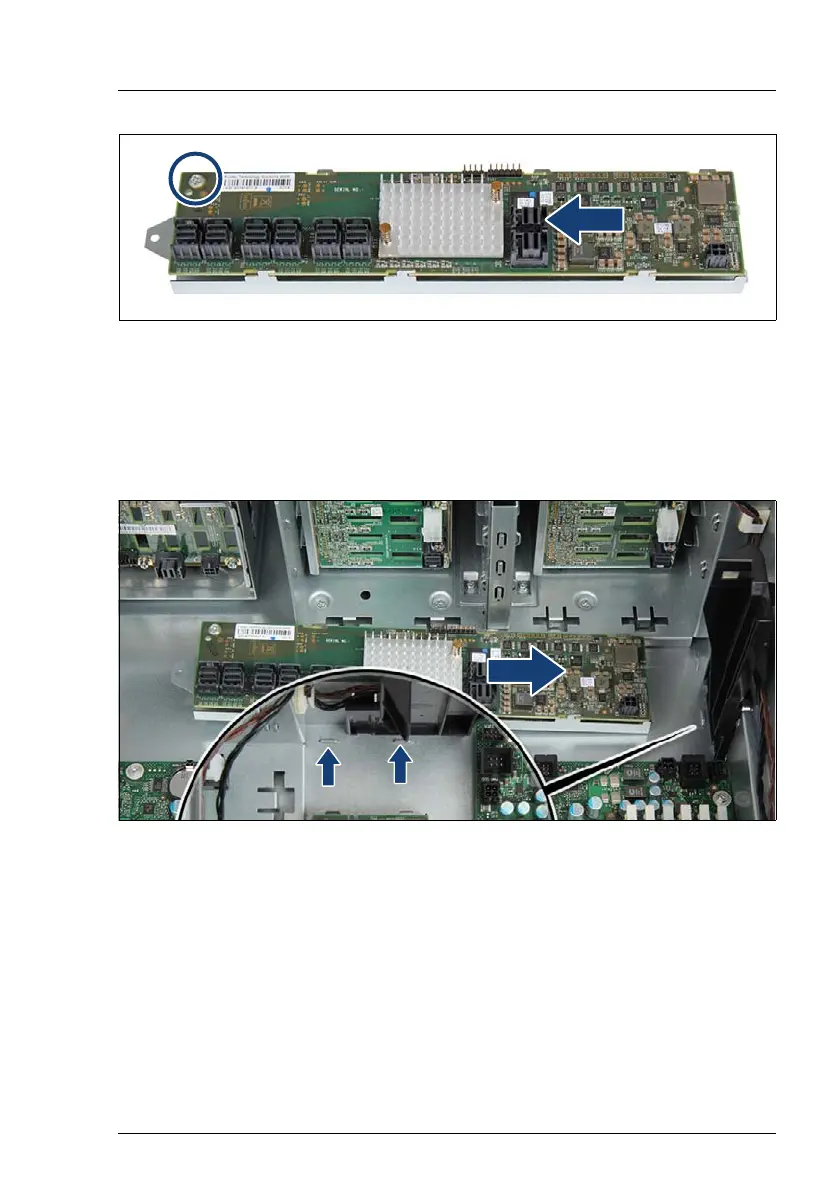

Figure 187: Installing the SAS expander board
Ê
Push the SAS expander board in the direction of the arrow.
Ê
Fasten the SAS expander board with one screw M3 x 4.5 mm (see circle).
7.7.1.3 Installing the expander holder
Figure 188: Installing the expander holder (A)
Ê
Position the expander holder in the chassis.
Ê
Push the expander holder in the direction of the arrow until it stops on the
two hooks (see close-up).
