TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
339
Expansion cards and backup units

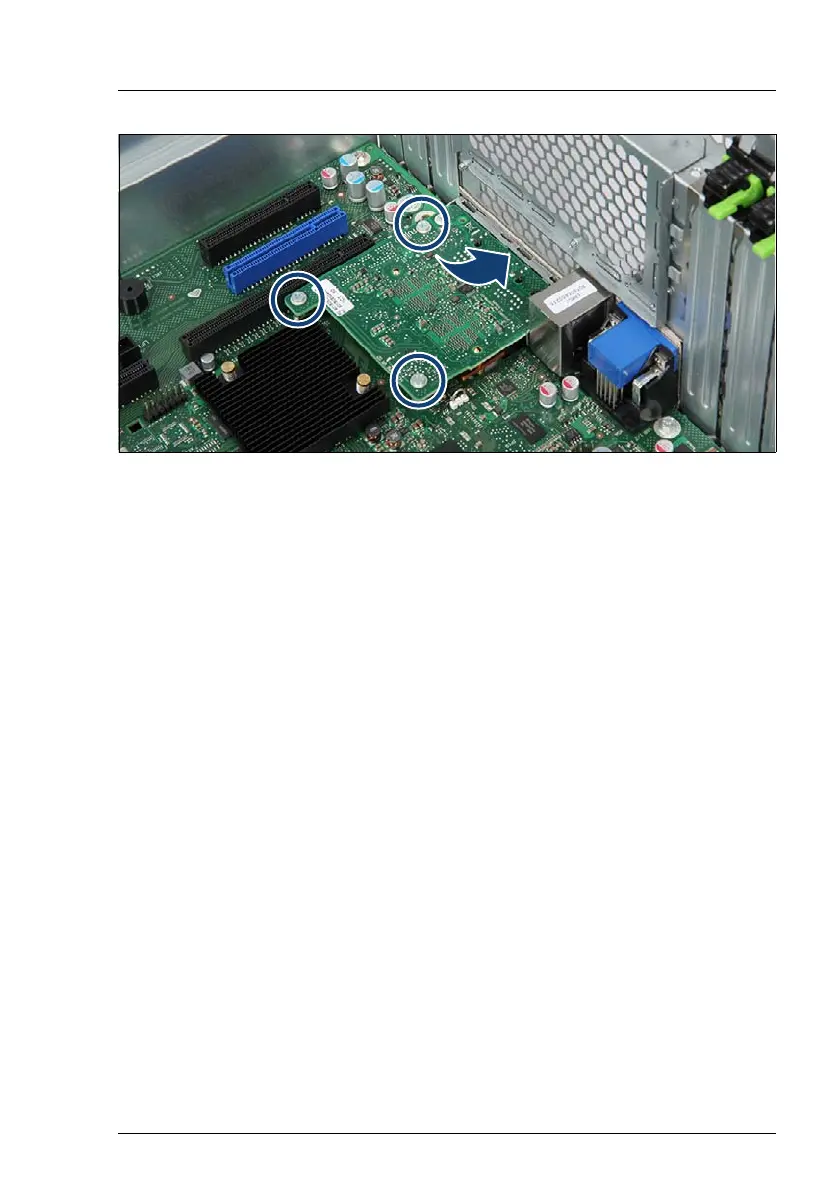

Figure 249: Installing the DynamicLoM module
Ê
Install the DynamicLoM module with the bottom side above. Make sure that
the connectors are positioned correctly in the rear side.
Ê
Fasten the DynamicLoM module with three screws M3 x 3.5 mm on the bolts
(see circles).
9.5.2.4 Concluding steps
Ê
If applicable, install the riser module 1 as described in section "Installing a
riser module" on page 95.
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
Ê
"Looking up changed MAC / WWN addresses" on page 137
Ê
"Updating the NIC configuration file in a Linux and VMware environment" on
page 134
Ê
"Configuring LAN teaming" on page 140
Ê
"Enabling SVOM boot watchdog functionality" on page 130
