Fujitsu PRIMERGY TX2560 M2 Upgrade And Maintenance Manual

448 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Front panel and external connectors

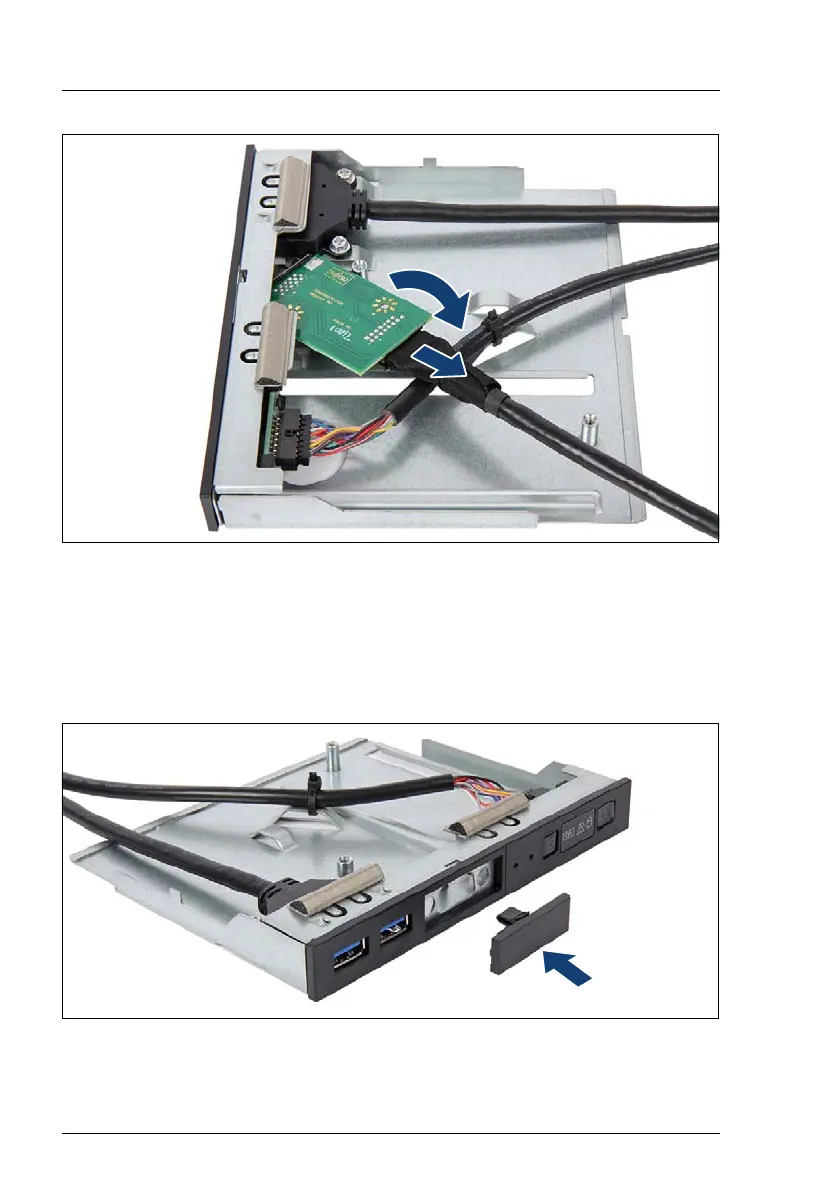

Figure 335: Removing the front VGA connector (B)
Ê Rotate the front VGA board clockwise.
Ê Remove the front VGA board.
13.2.2.3 Installing the front VGA dummy cover
Figure 336: Installing the front VGA dummy cover
Ê Insert the front VGA dummy cover and press in firmly until it snaps in place.
