7.3.13.3 Removing the 4x 3.5-inch HDD front panel

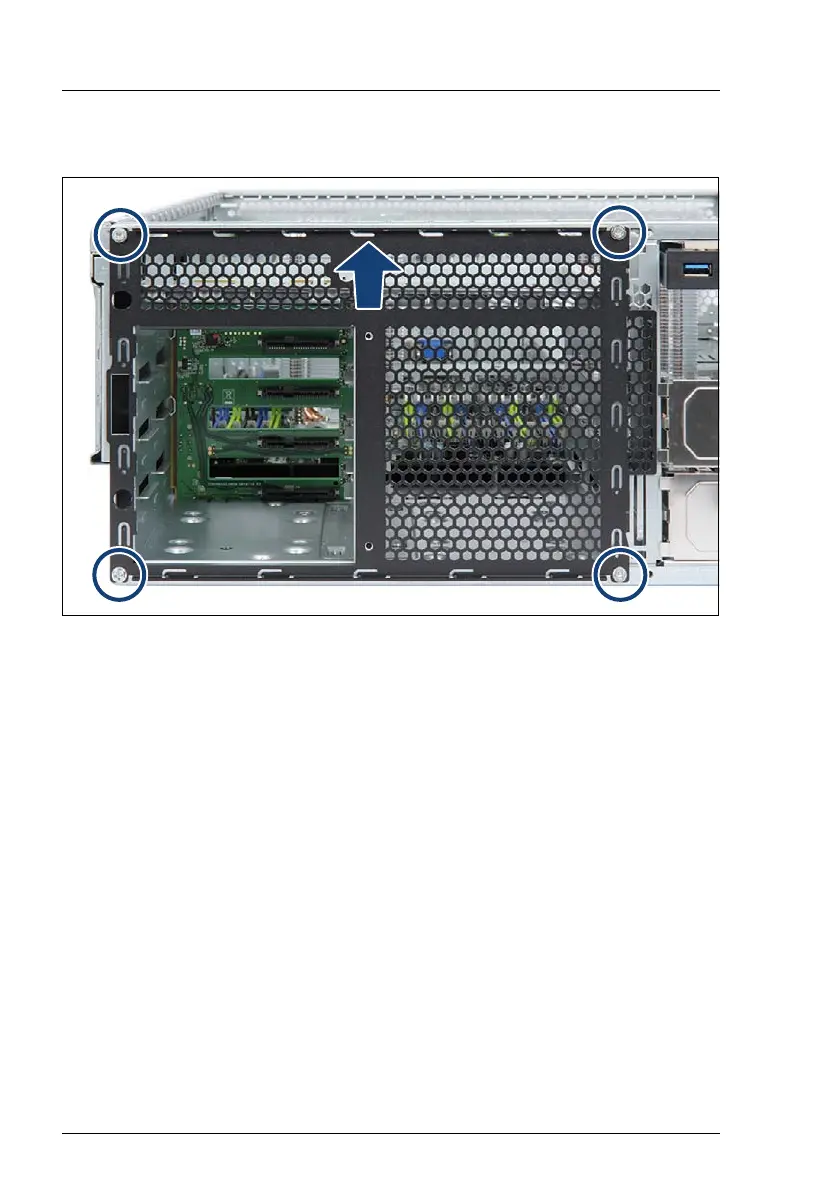

Figure 146: Removing the 4x 3.5-inch HDD front panel
Ê
Remove four screws from the 4x 3.5-inch HDD front panel (see circles).
Ê
Pull up the 4x 3.5-inch HDD front panel to disengage it from the chassis (see
arrow).
Ê
Remove the 4x 3.5-inch HDD front panel.
