4.11.4 Accessible drive covers
4.11.4.1 Removing accessible drive covers

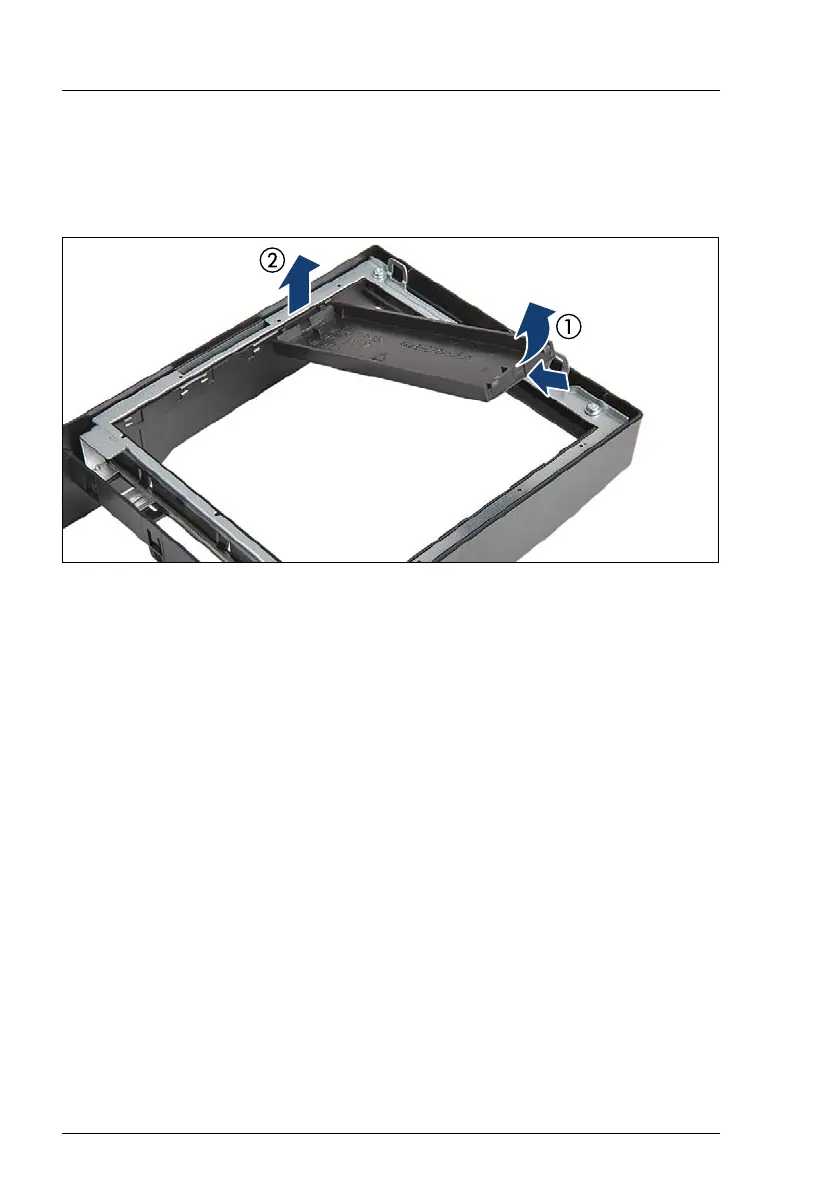

Figure 57: Removing an accessible drive covers
I
Removing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê
Turn the front cover face down.
Ê
Press in on the lugs on either side of the drive cover.
Ê
Fold up (1) and remove the accessible drive cover (2).
