9.3.1.2 Removing the slot cover

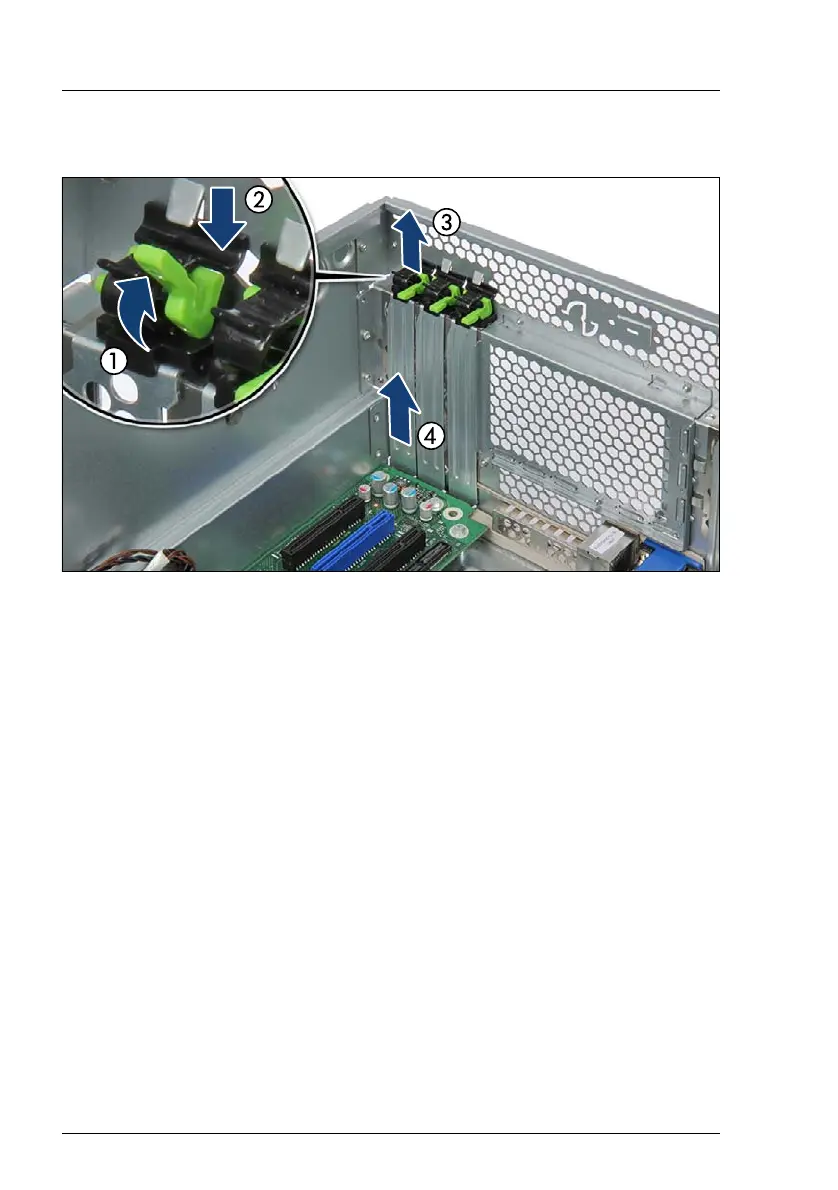

Figure 204: Removing the slot cover - example PCI slot 1
Ê
Fold up the locking handle on the slot cover clamp (1, see close-up).
Ê
Press down on the slot cover clamp to disengage it (2, see close-up).
Ê
Remove the slot cover clamp (3).
Ê
Remove the slot cover (4).
V CAUTION!
Keep the slot cover for future use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.3.1.3 Installing an expansion card
Ê
Remove the expansion card from its protective packaging.
I
For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê
If applicable, attach the required slot bracket to the expansion card as
described in section "Handling slot brackets" on page 293.
