Front panel and external connectors
13.1.5 Installing the front panel module
Installing the front panel module

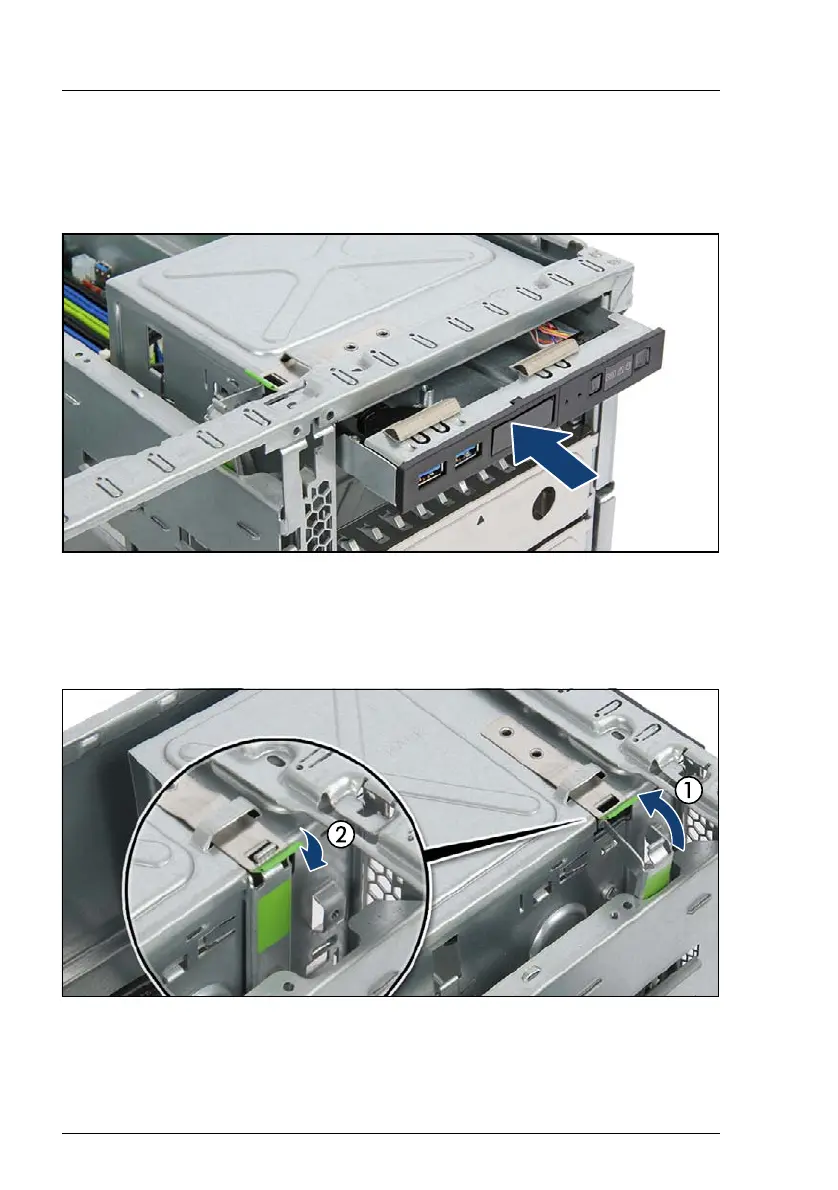

Figure 326: Installing the front panel module
Ê
Insert the front panel module into its installation bay and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar.
Figure 327: Closing the accessible drive locking bar (rack server)
Ê
Fold in the locking bar (1) until it locks in place (2,see close-up).
