Basic hardware procedures
4.5.2.5 Locking the server

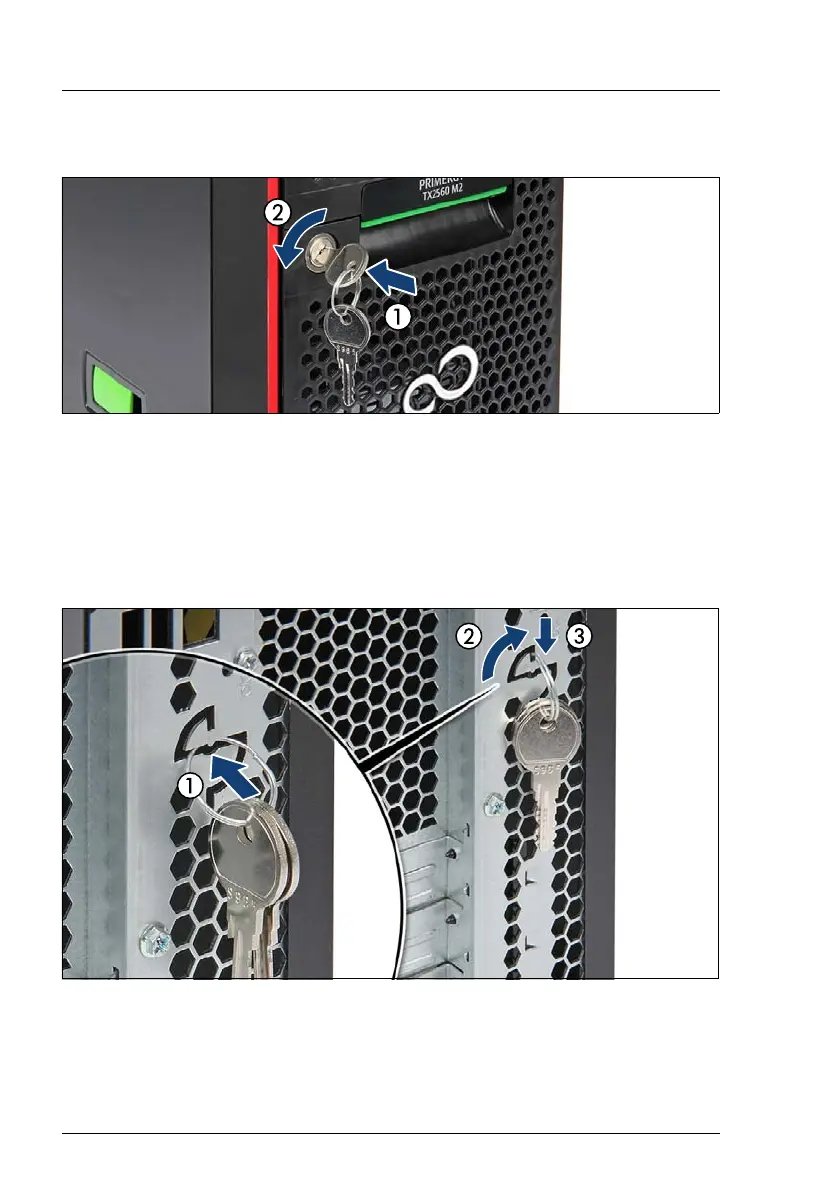

Figure 35: Locking the server
Ê If required by security regulations, lock the server:
Ê Insert the key into the lock on the server front (1).
Ê Turn the key counter-clockwise to lock the front and side covers (2).
Ê Remove the key from the server front.
Figure 36: Storing the key ring
Ê Insert the key ring into the slot on the server rear (1).
Ê Turn the key ring clockwise by 90 degrees (2) until it latches in place as
shown (3).
