12.7.1.2 Installing the ultraslim ODD into the ultraslim ODD adapter

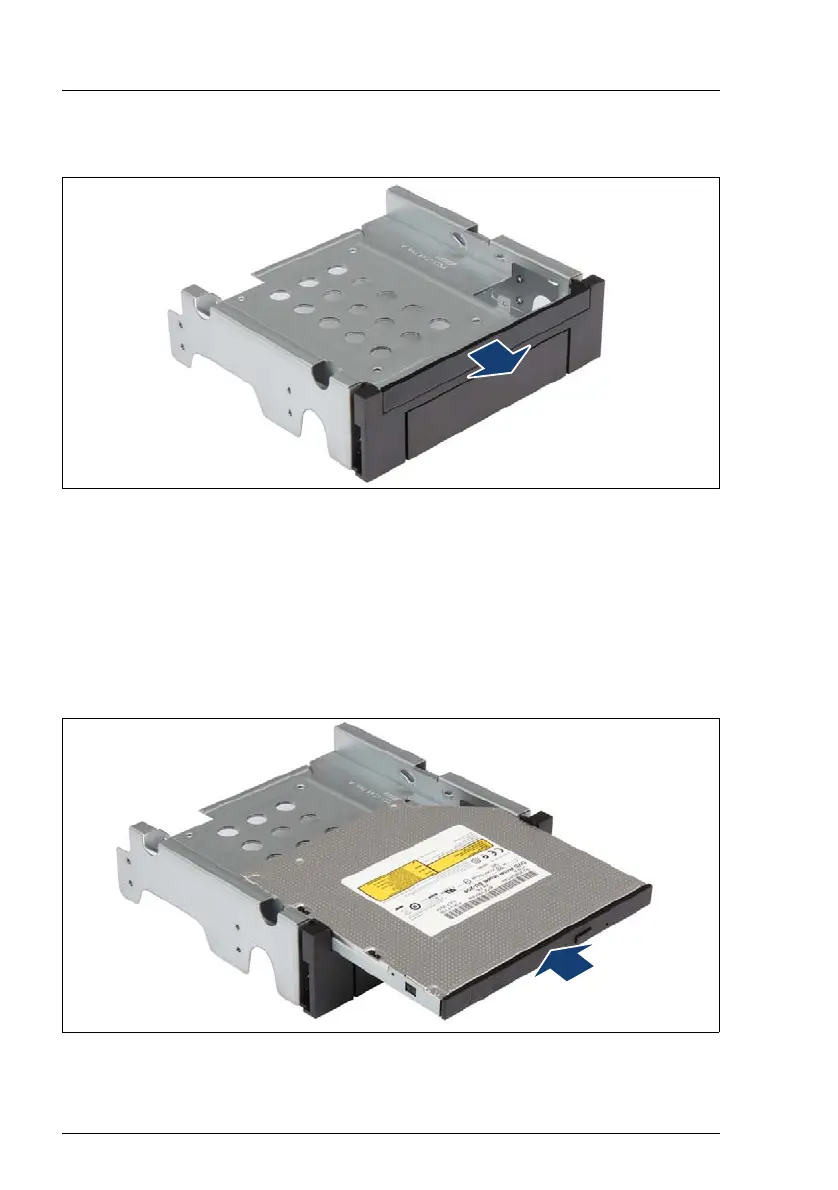

Figure 318: Removing the ultraslim ODD dummy cover - ultraslim ODD adapter
Ê
Remove the ultraslim ODD dummy cover.
V CAUTION!
Keep the dummy cover for future use. If a ultraslim ODD is removed and
not immediately replaced by a new one, a ultraslim ODD dummy cover
must be replaced in the slot to comply with applicable EMC regulations
and satisfy cooling requirements.
Figure 319: Installing the ultraslim ODD in the ultraslim ODD adapter (A)
Ê
Slide the ultraslim ODD into its bay.
