TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
203
Hard disk drive (HDD) / solid state drive (SSD)
7.2.16.2 Removing the 8x 2.5-inch HDD front panel

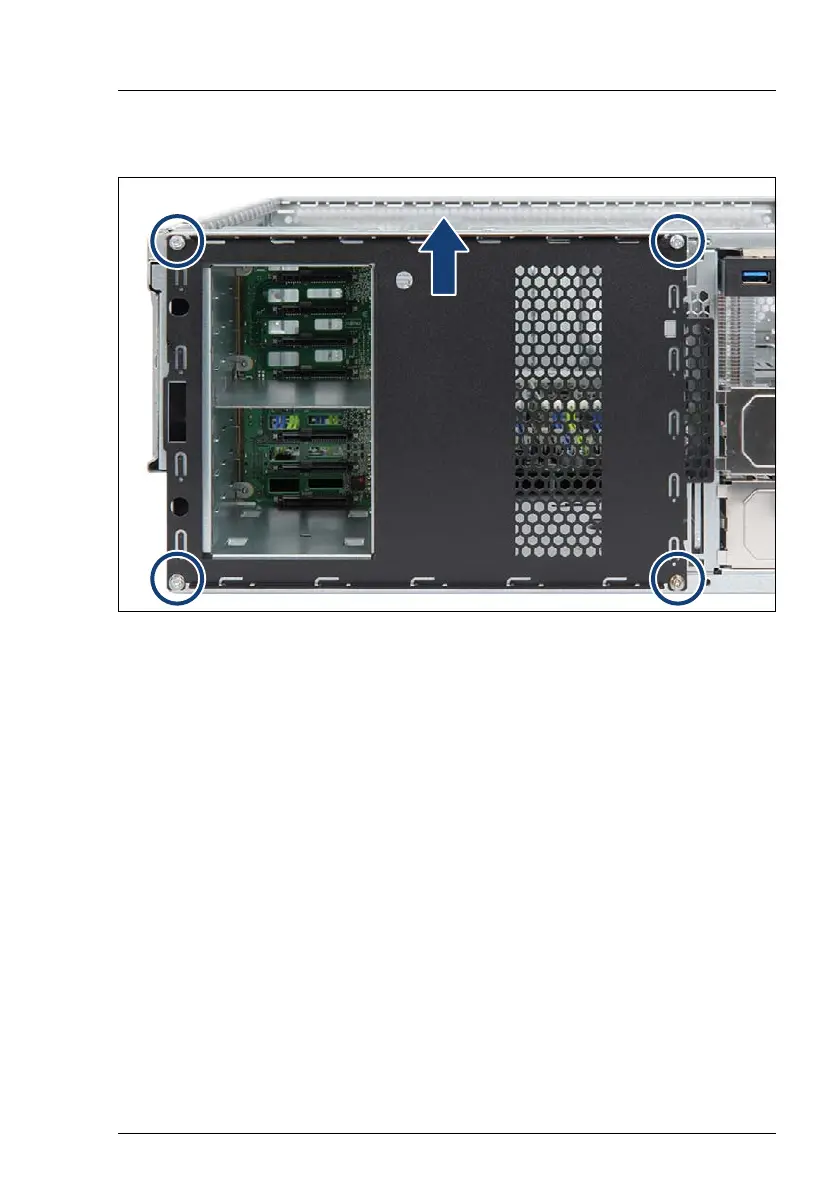

Figure 117: Removing the 8x 2.5-inch HDD front panel
Ê
Remove four screws from the 8x 2.5-inch HDD front panel.
Ê
Pull up the 8x 2.5-inch HDD front panel to disengage it from the chassis.
Ê
Remove the 8x 2.5-inch HDD front panel.
7.2.16.3 Removing the 2.5-inch HDD bay top cover
Ê
Remove the 2.5-inch HDD bay cover as described in section "Removing the
2.5-inch HDD bay top cover" on page 180.
7.2.16.4 Installing the second 2.5-inch HDD/SSD SAS backplane
Ê
Install the second 2.5-inch HDD/SSD SAS backplane and the second HDD
cage as described in section "Installing a 2.5-inch HDD/SSD SAS
backplane" on page 185.
