12.2.4 Installing an accessible drive

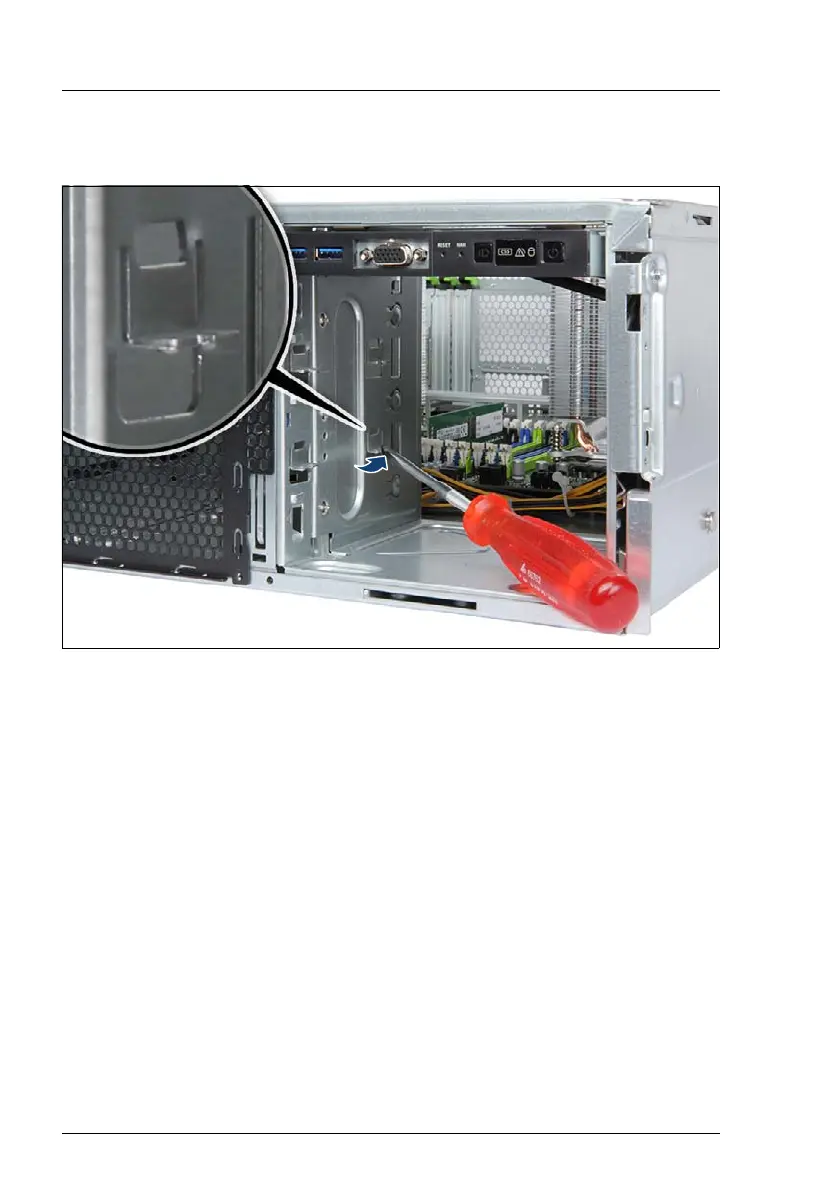

Figure 291: Mounting brackets in right position
Ê
Ensure that the four mounting brackets in the desired accessible drive bay
have not been bent inwards as for installing HDD extension boxes. If
applicable, bend the mounting brackets back to the original positions (see
close-up).
Ê
Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 100.
