TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
235
Hard disk drive (HDD) / solid state drive (SSD)
7.3.13.7 Connecting cables to the SAS backplane 2

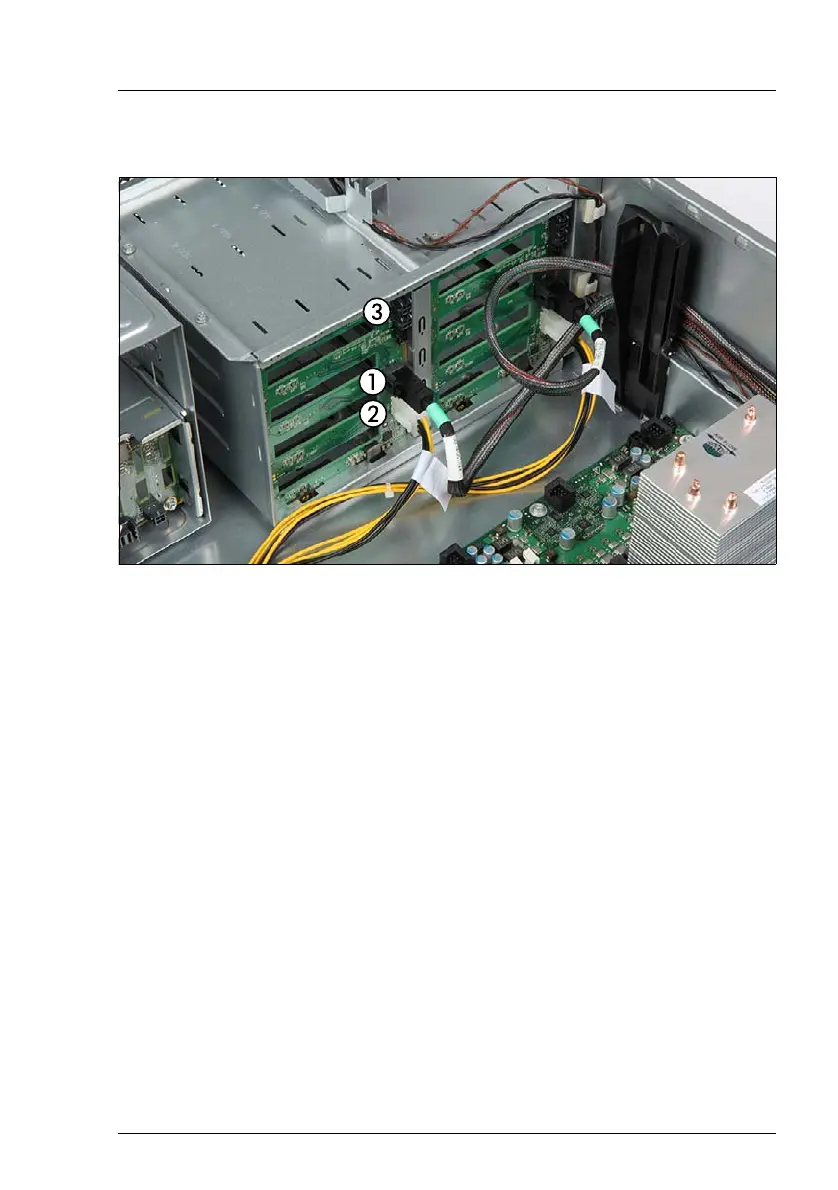

Figure 150: Connecting cables to the SAS backplane 2
Ê
Connect the SAS cable to the backplane 2:
– (1) from SAS controller connector MLC2 to backplane 2 connector X9
Ê
Connect power cables to the backplane 2:
– (2) power cable from system board connector PWR 12V 2 to the
backplane 2 connector X40
– (3) if applicable, power cable to an additional accessible drive (power
connector X17 or X18)
Ê
If applicable, connect the OOB cable (see cabling plan in figure 401 on
page 530 or figure 402 on page 530).
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
7.3.13.8 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
