8.2 Replacing a system fan module
8.2.1 Preliminary steps
Ê
"Locating the defective server" on page 55
Ê
"Getting access to the component" on page 61
Ê
"Locating the defective component" on page 57
8.2.2 Removing the defective system fan module

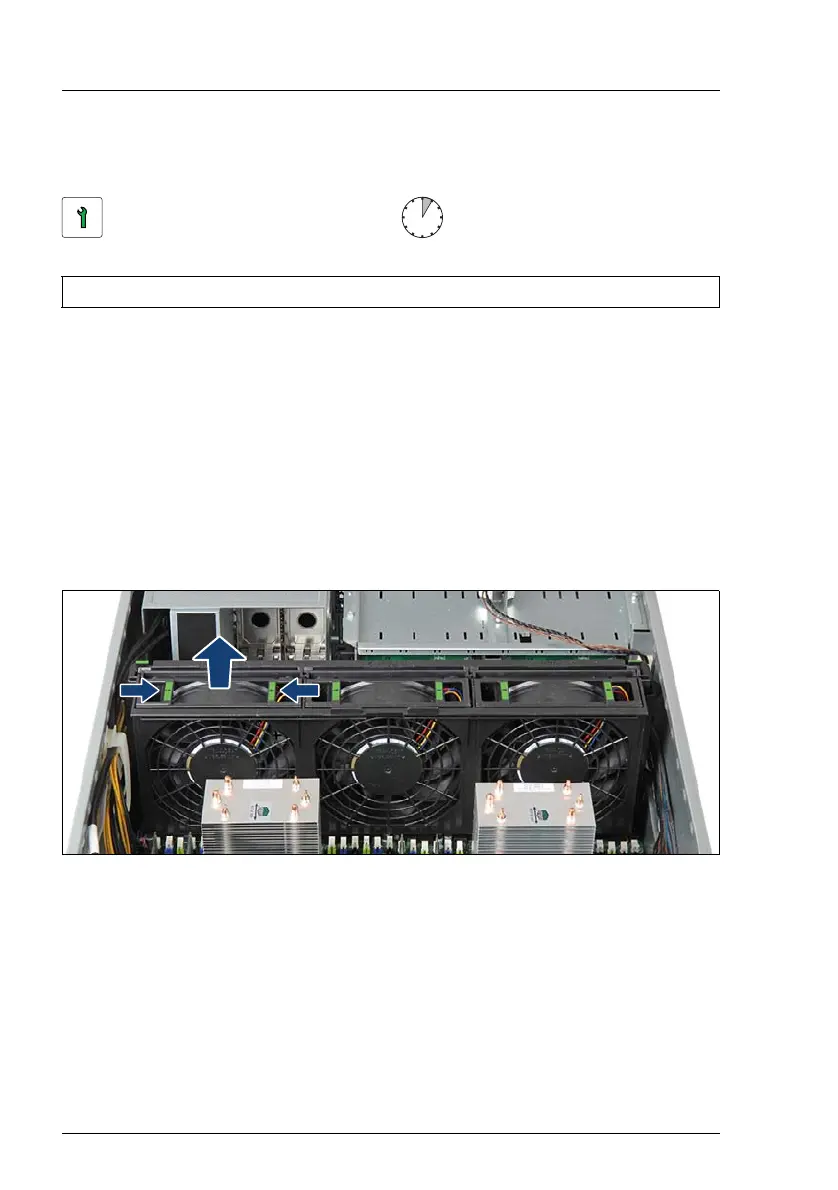

Figure 198: Removing a system fan module
Ê
Have the replacement fan module ready for immediate installation after the
defective module has been removed.
Ê
Pinch the two green locking tabs on the defective fan module while pulling
up.
Ê
Lift the fan module out of its bay in the system fan holder.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools:
tool-less
