TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
285

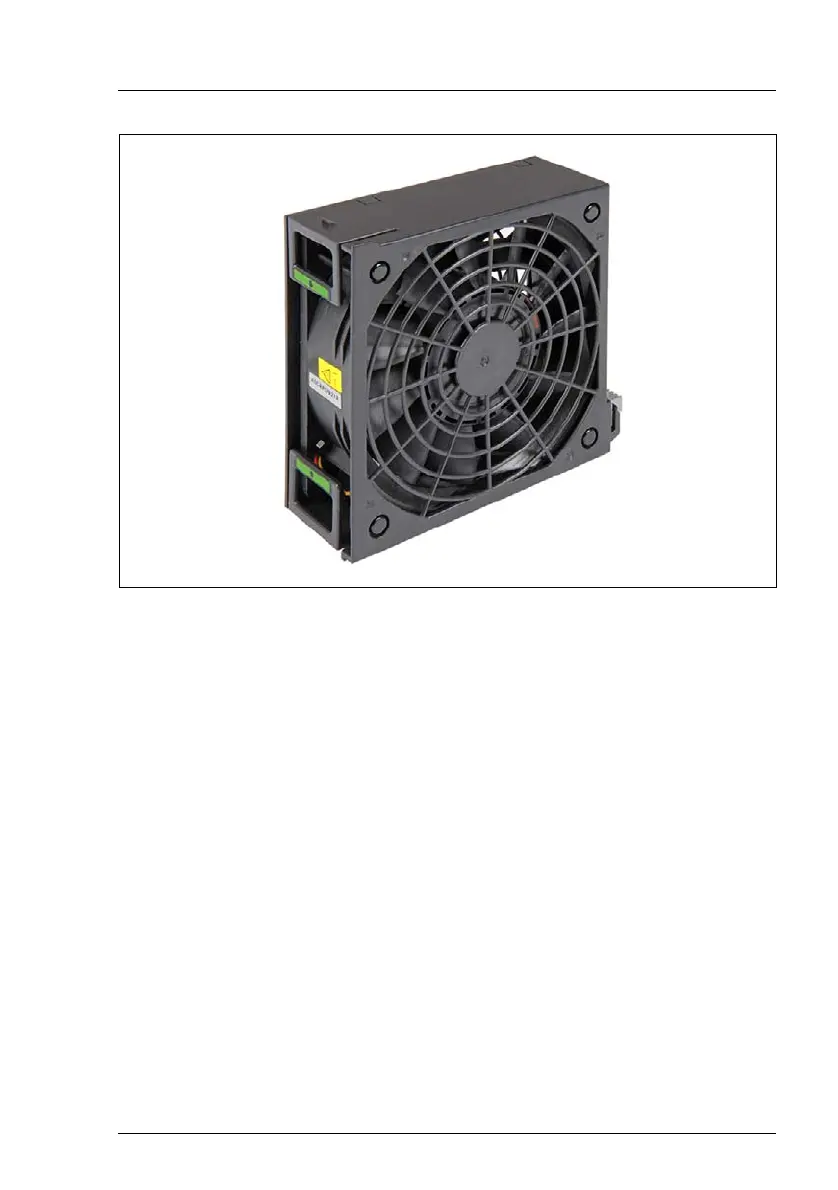

Figure 197: System fan module
– The server contains three hot-pluggable system fan modules.
– An system air duct directs the airflow directly onto the CPU heat sinks and
memory slots.
I
Additional fans in PSUs are integral parts of the power supply units and
cannot be replaced separately.
