Front panel and external connectors

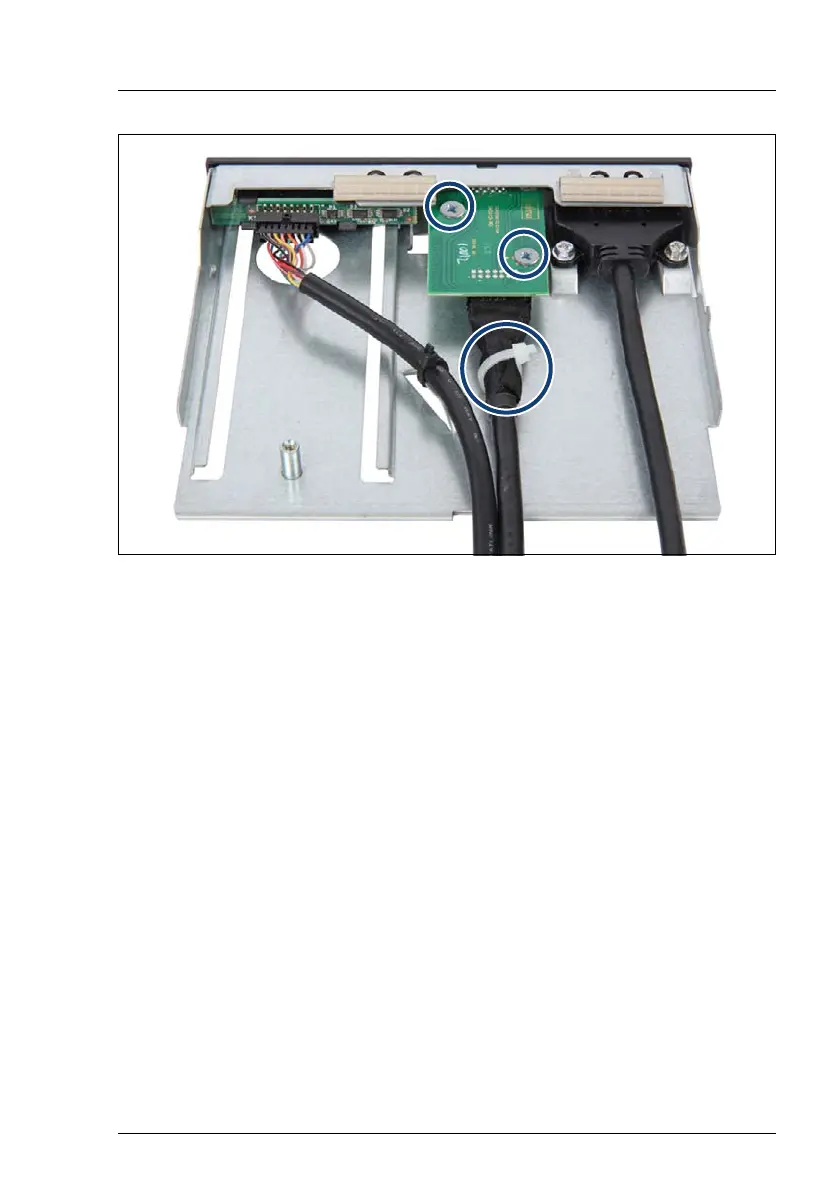

Figure 333: Installing the front VGA connector (B)
Ê
Secure the front VGA board with two screws (see circles).
Ê
Secure the front VGA cable to the lug with a cable tie (see circle).
13.2.1.4 Concluding steps
Ê
"Installing the front panel module" on page 440
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
Ê
"Resuming BitLocker functionality" on page 136
