TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
241
Hard disk drive (HDD) / solid state drive (SSD)
7.4.2.5 Cabling the 8x 2.5-inch HDD extension box

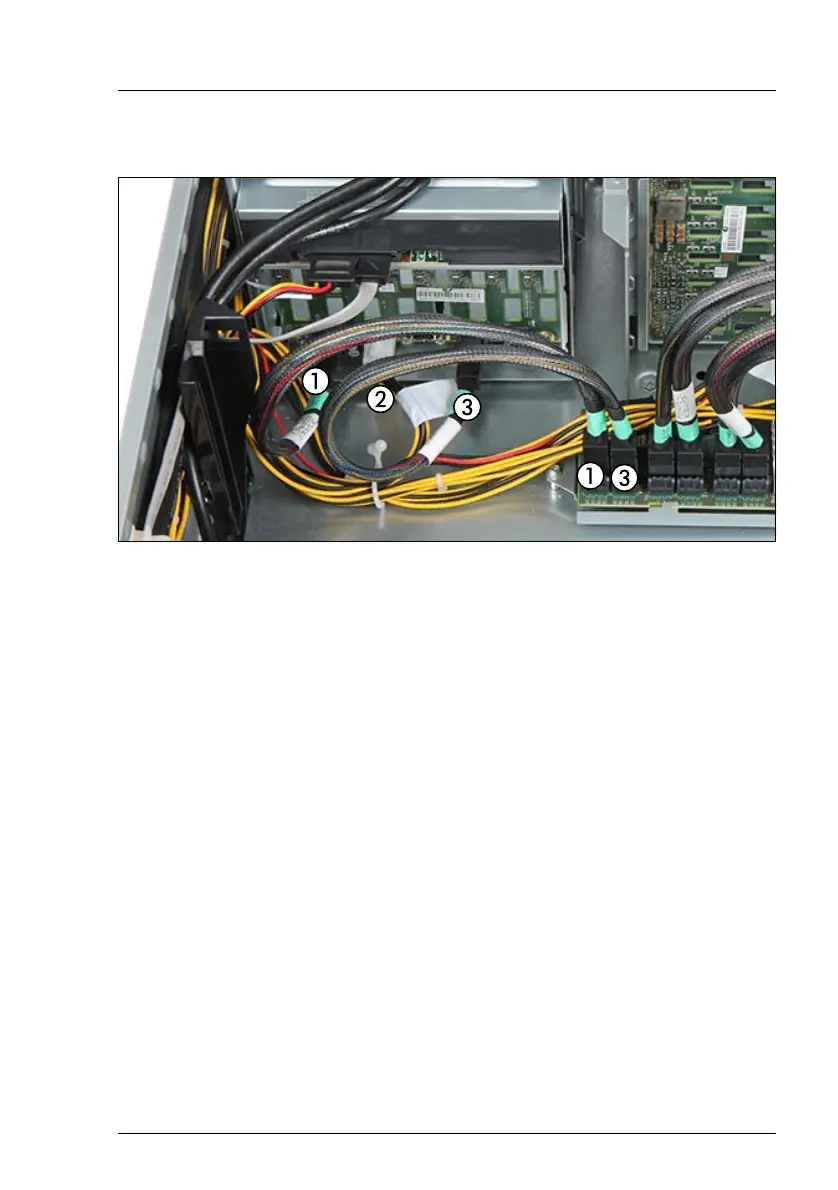

Figure 155: Connecting the 8x 2.5-inch HDD extension box
Ê
Connect the SAS cable C11 from backplane connector X9 to the expander
board connector X14 (1).
Ê
Connect the power cable C6 from backplane connector X40 to the system
board connector PWR 12V3 (2).
Ê
Connect the SAS cable C11 from backplane connector X10 to the expander
board connector X15 (3).
Ê
If applicable, connect the OOB cable (see cabling plan in figure 402 on
page 530).
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
7.4.2.6 Installing HDD modules into the 8x 2.5-inch HDD extension box
Ê
"Reassembling" on page 74
Ê
Install HDD modules or HDD dummy modules into the additional HDD bays
as described in sections "Installing a 2.5-inch HDD/SSD module" on
page 174 and "Installing a 2.5-inch HDD/SSD dummy module" on page 177.
I
For detailed information on HDD mounting order, refer to section "2.5-
inch HDD/SSD/PCIe SSD configurations" on page 155.
