Fujitsu PRIMERGY TX2560 M2

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 311
Expansion cards and backup units

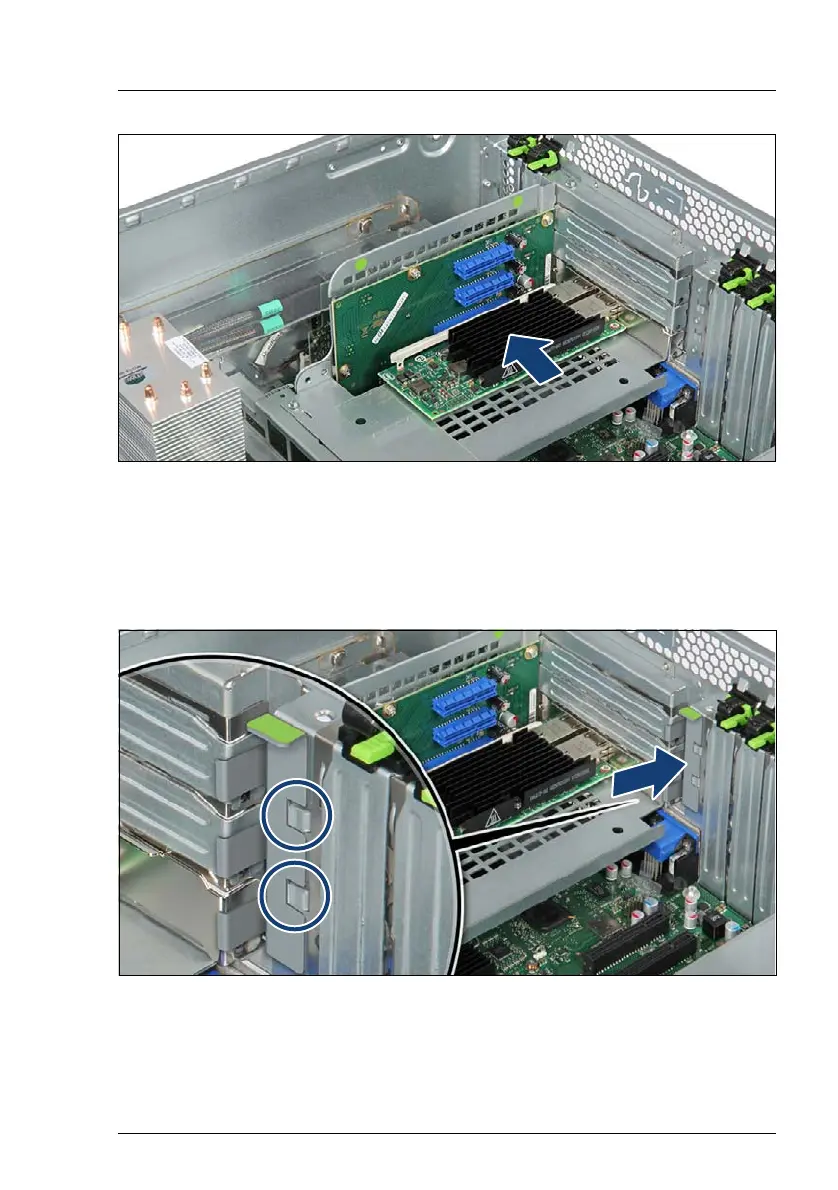

Figure 218: Installing a PCIe expansion card in a riser module
Ê Carefully insert the PCIe expansion card into the desired PCI slot and press
down firmly until it is fully seated in the slot.
9.3.5.5 Installing the slot cover lock
Figure 219: Installing the slot cover lock
Ê Insert the slot cover lock into the gap next to the three slot covers. Ensure
that the guides on the inner rear wall (see circles) are properly seated in the
cutouts of the slot cover lock.
