Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

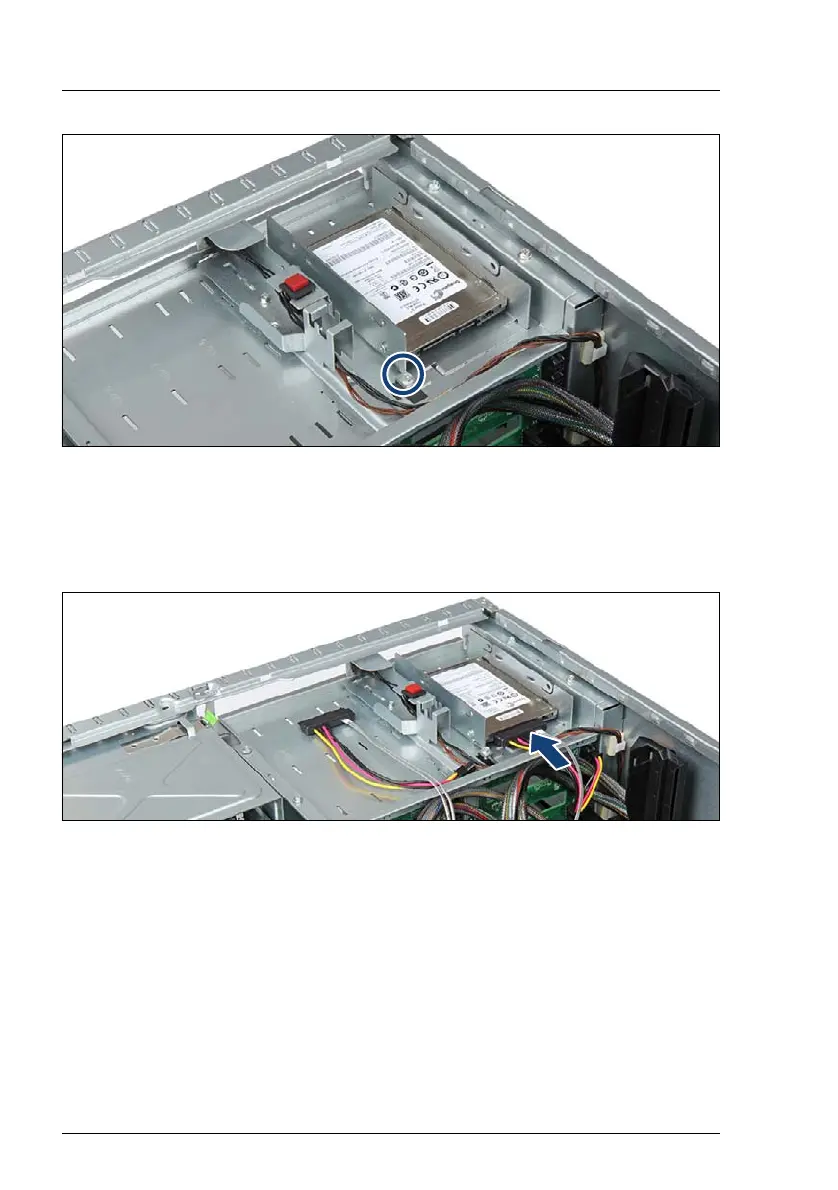

Figure 182: Installing the non-hot-plug cage (B)
Ê
Fasten the non-hot-plug cage with one screw M3 x 4.5 mm (see circle).
7.6.1.6 Connecting the cable to a non-hot-plug HDD/SSD
Figure 183: Connecting the cable to the non-hot-plug HDD/SSD 1
Ê
Connect the cable C35 (P2) to the non-hot-plug HDD/SSD 1 as shown.
