TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
239
Hard disk drive (HDD) / solid state drive (SSD)
7.4.2.4 Installing the 8x 2.5-inch HDD extension box

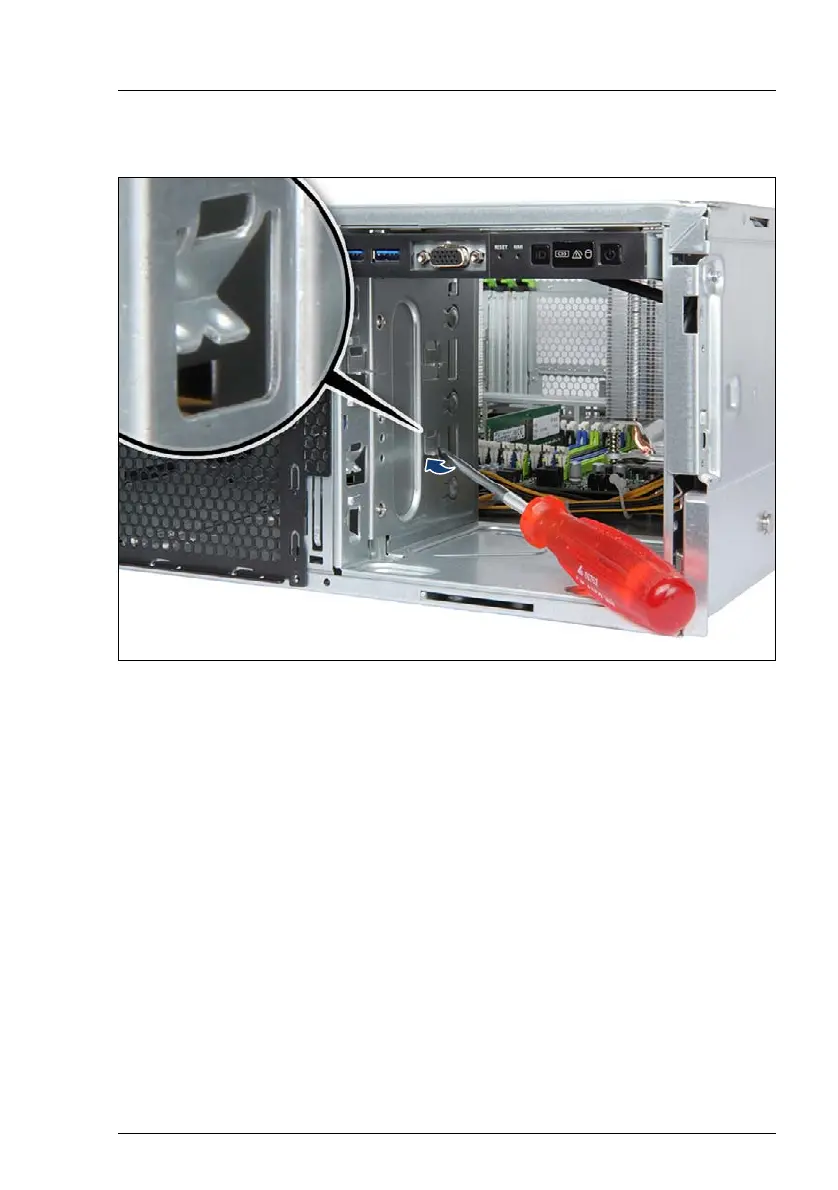

Figure 153: Bending in mounting brackets
Ê
Using a screw driver, bend the four mounting brackets of the middle
installation bay (bay 2) inwards (see close-up):
Ê
Bend in the lower two mounting brackets on each side of the drive cage.
Ê
Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 100.
