Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.12.6 Connecting cables to the SAS backplane 1

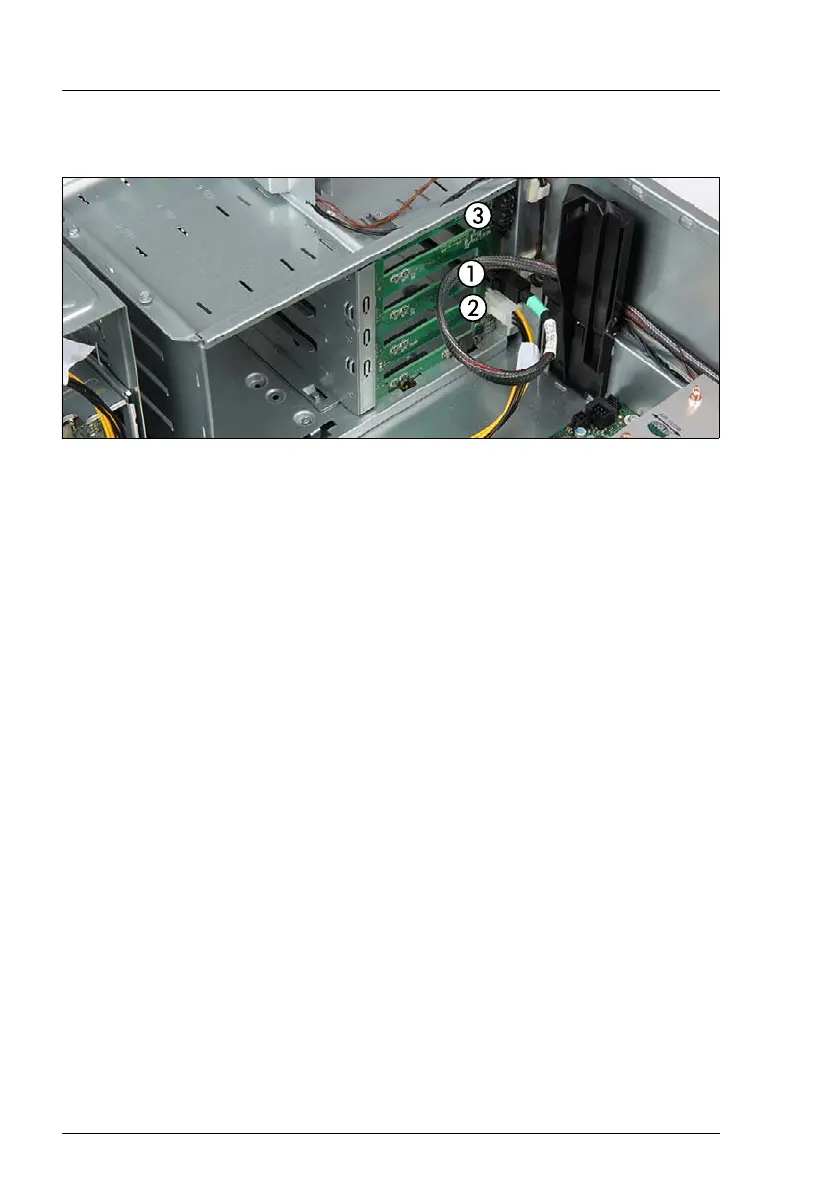

Figure 145: Connecting cables to the SAS backplane 1
Ê
Connect the SAS cable to the backplane:
– (1) from SAS controller connector MLC1 to backplane connector X9
Ê
Connect power cables to the backplane:
– (2) power cable from system board connector PWR 12V 1 to the
backplane connector X40
– (3) if applicable, power cable to an additional accessible drive (power
connector X17 or X18)
Ê
If applicable, connect the OOB cable (see cabling plan in figure 401 on
page 530 or figure 402 on page 530).
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
7.3.12.7 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
Install all removed HDD modules as described in section "Installing a 3.5-
inch HDD module" on page 219.
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
