410
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2

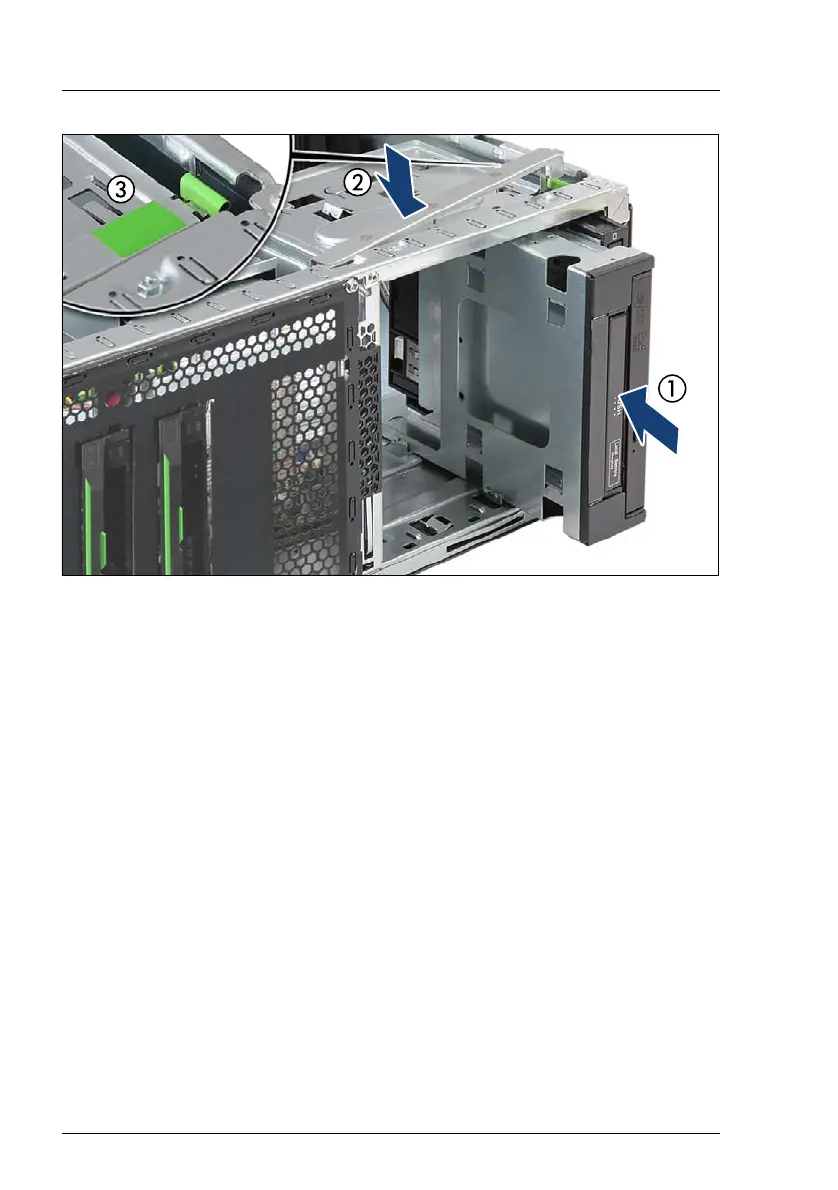

Figure 303: Inserting the Multibay box
Ê
Insert the Multibay box into installation bay 1 and carefully push in until it
lines up with the front panel (1).
Ê
Close the locking bar (2) until it locks in place (3).
Ê
Connect the LSD, SATA and power cables (see section "Cabling plans" on
page 512).
12.5.1.6 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Installing a riser module" on page 95 (if applicable)
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
