Fujitsu PRIMERGY TX2560 M2 Upgrade And Maintenance Manual

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 341
Expansion cards and backup units
9.5.3 Removing the DynamicLoM module
9.5.3.1 Preliminary steps
Ê
"Disabling SVOM boot watchdog functionality" on page 112
Ê "Shutting down the server" on page 58
Ê "Disconnecting the power cord" on page 59
Ê "Getting access to the component" on page 61
Ê If applicable, remove the riser module 1 as described in section "Removing
a riser module" on page 98.
9.5.3.2 Removing the DynamicLoM module

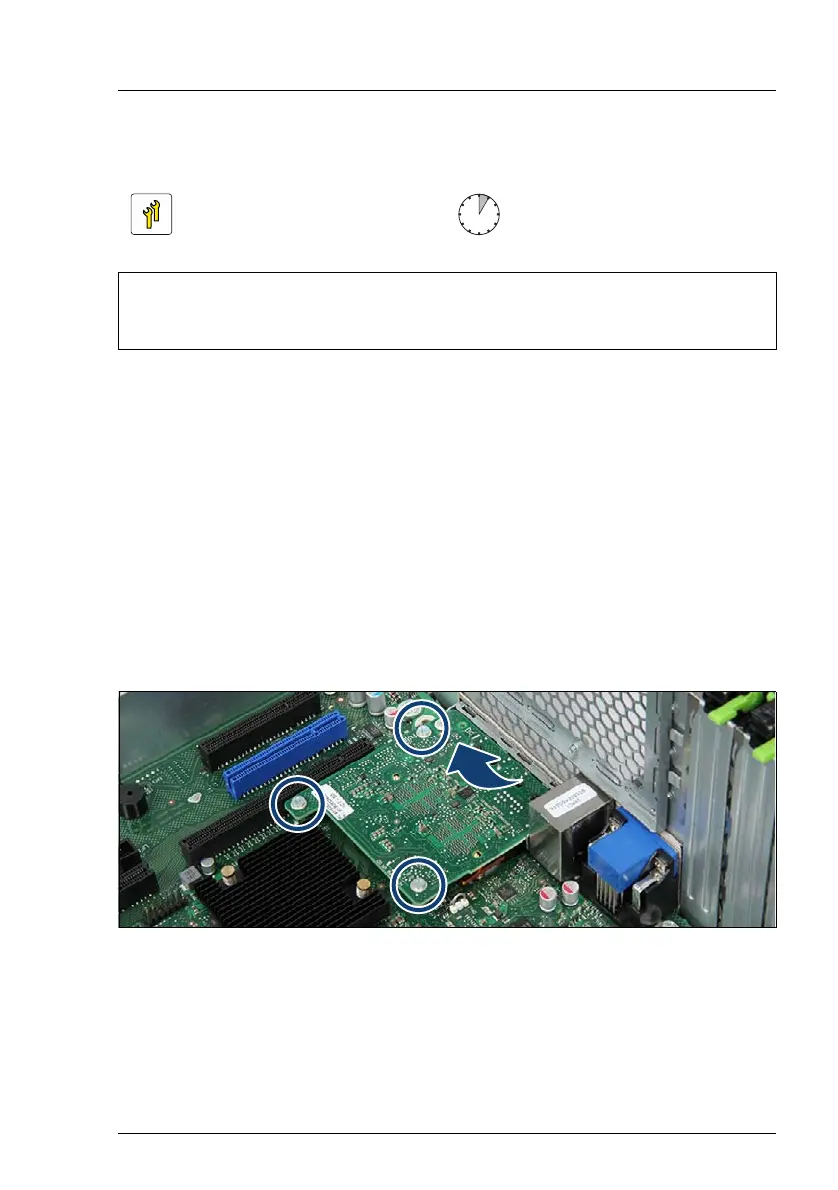

Figure 250: Removing the DynamicLoM module
Ê Remove the three screws (see circles).
Ê Remove the DynamicLoM module.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool:
– Phillips PH0 / (+) No. 0 screw driver
– hexagon screw driver 5 mm
– Phillips PH2 / (+) No. 2 screw driver (for system board screw)
