TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
227
Hard disk drive (HDD) / solid state drive (SSD)
7.3.12.4 Installing a 3.5-inch HDD SAS backplane

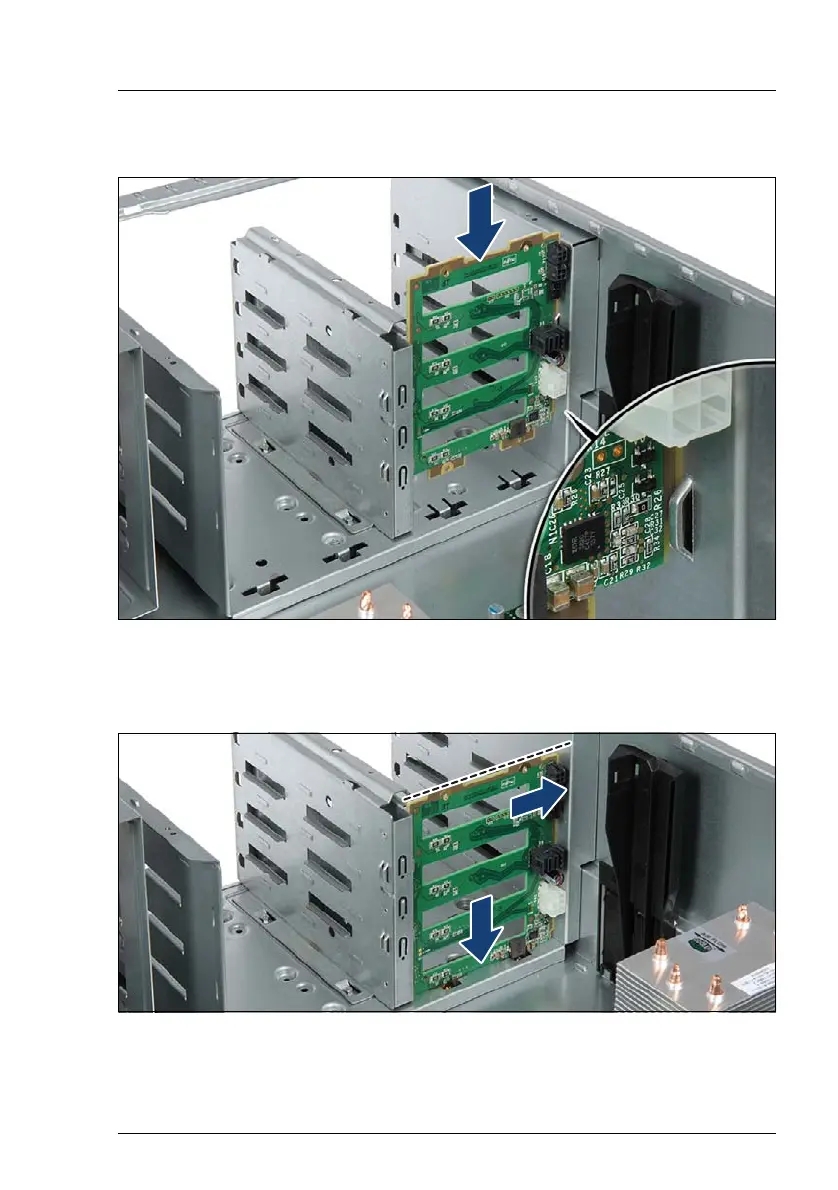

Figure 140: Installing the new 4x 3.5-inch HDD SAS backplane (A)
Ê
Fit the SAS backplane into the guide on the outer wall of the HDD bay (see
close-up) and lower it into the bottom rim.
Figure 141: Installing the new 4x 3.5-inch HDD SAS backplane (B)
Ê
Ensure that the 4x 3.5-inch HDD SAS backplane is properly seated into the
bottom rim and side guide (see arrows).
