TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
293
Expansion cards and backup units
I
The list may be changed due to new controllers.
For the latest information on supported expansion cards, refer your
server’s hardware configurator available online at the following address:
for the global market:
http://ts.fujitsu.com/products/standard_servers/index.htm
for the Japanese market:
http://jp.fujitsu.com/platform/server/primergy/system/
9.2 Handling slot brackets
9.2.1 Installing a slot bracket
Example standard expansion card
V CAUTION!
In order to satisfy cooling requirements, ensure to use a perforated full
height slot bracket.

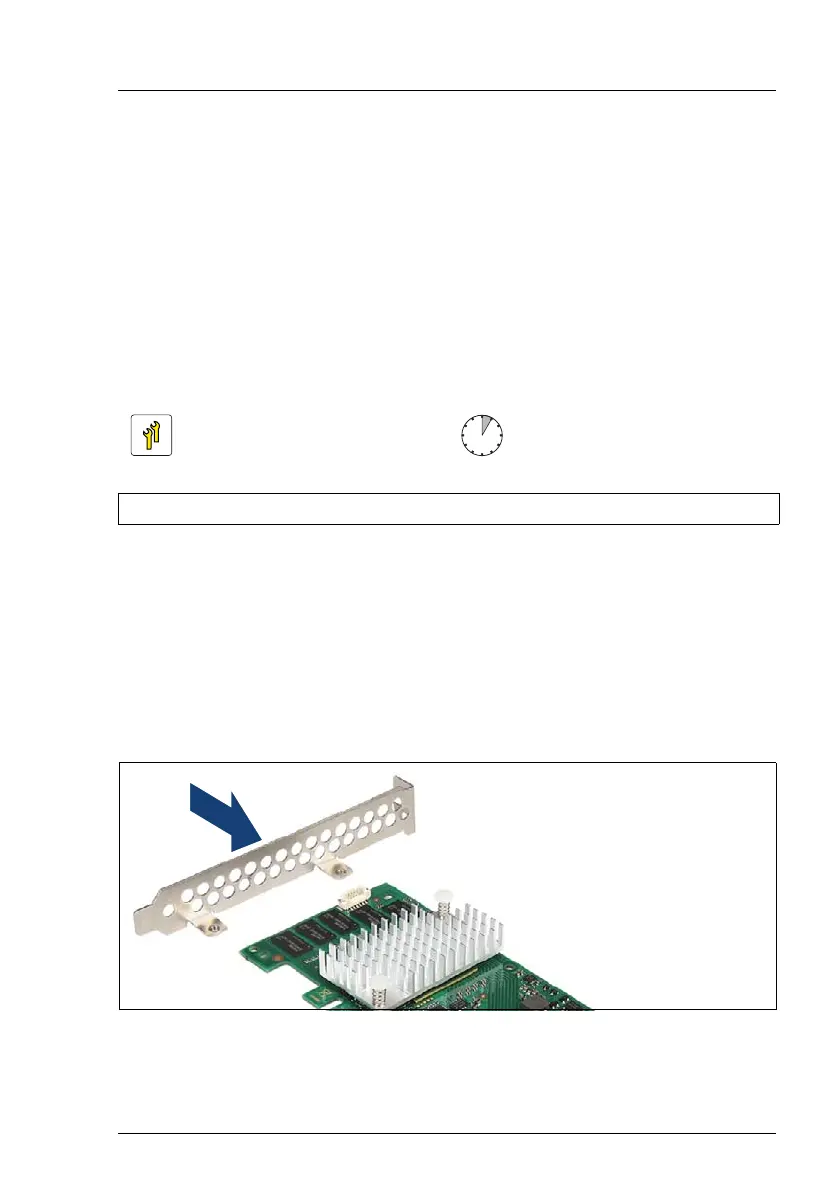

Figure 202: Mounting the PCI slot bracket (A)
Ê
Place the controller on the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Average task duration:
5 minutes
Tools:
Phillips PH2 / (+) No. 2 screw driver
