Basic hardware procedures
4.3 Disconnecting the power cord

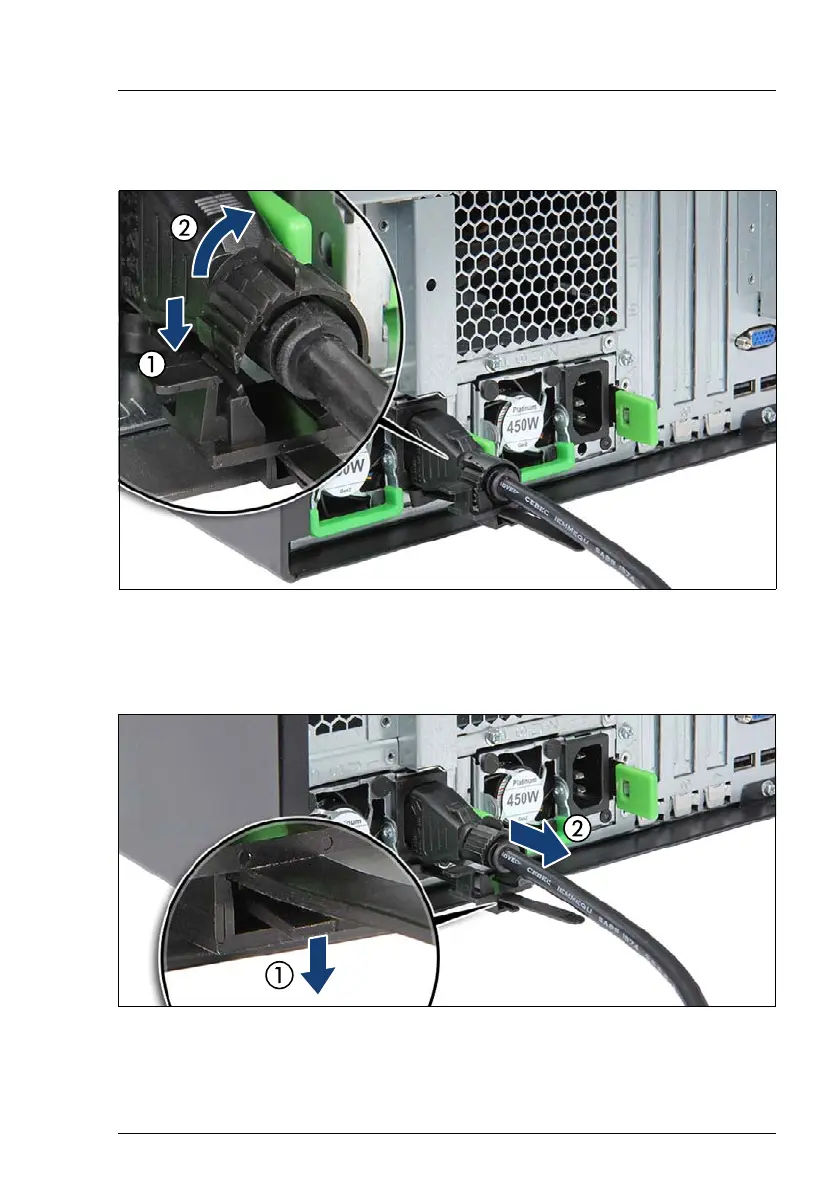

Figure 2: Unlocking the cable clamp of a PSU
Ê
Press the cable clamp down until it disengages (1).
Ê
Open the cable clamp (2).
Figure 3: Removing the power cord from the PSU cable bracket (A)
Ê
Press down on the locking lever on the PSU cable bracket (1) and pull down
the loop from the cord grip (2).
