TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 243
Hard disk drive (HDD) / solid state drive (SSD)

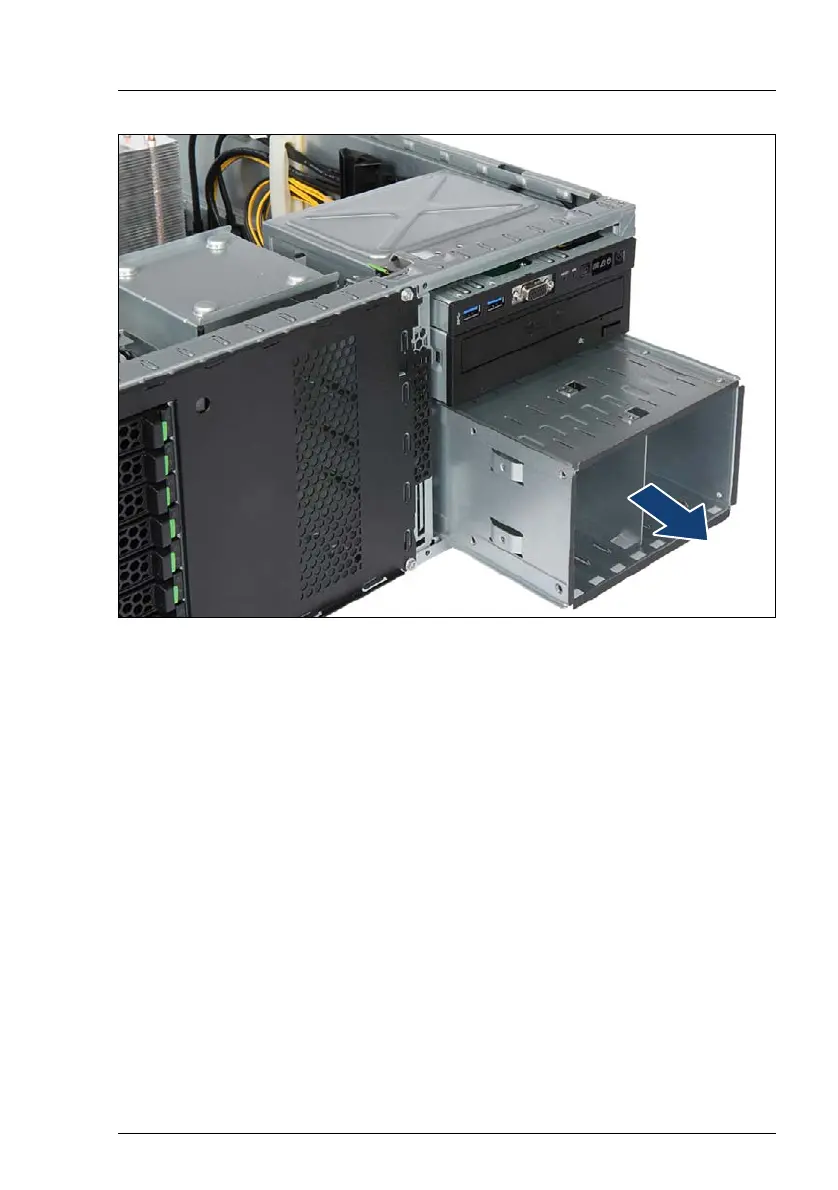

Figure 156: Removing the 8x 2.5-inch HDD extension box
Ê Carefully pull the 8x 2.5-inch HDD extension box out of its installation bays.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
7.4.3.3 Installing accessible drive dummy covers
Ê
Install accessible drive filler covers into empty drive bays as described in
section "Accessible drive filler covers" on page 104.
Ê Install accessible drive covers into the front cover as described in section
"Accessible drive covers" on page 106.
7.4.3.4 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê "Installing the system air duct" on page 92
Ê "Reassembling" on page 74
