TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
173
Hard disk drive (HDD) / solid state drive (SSD)
7.2.10 Installing 2.5-inch HDD/SSD modules
I
PCIe SSDs SFF are mounted in the same frames as the 2.5-inch
HDD/SSD modules. Therefore, this section is also valid and applicable if
PCIe SSDs SFF are used.
7.2.10.1 Preliminary steps
Ê
When working on a tower server, open the HDD bay cover as described in
section "Removing accessible drive and HDD bay covers" on page 71.
Ê
Locate the correct drive bay as described in section "2.5-inch
HDD/SSD/PCIe SSD configurations" on page 155.
7.2.10.2 Removing a 2.5-inch HDD/SSD dummy module

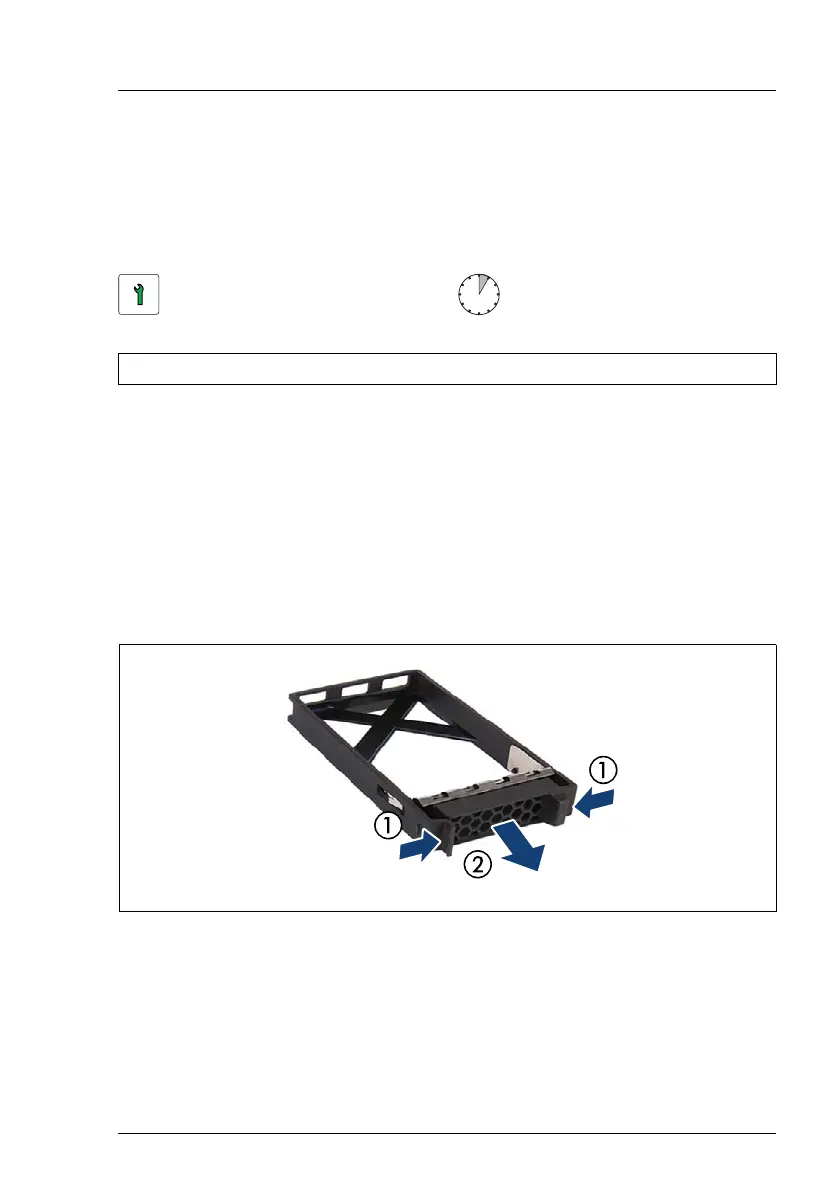

Figure 87: Removing a 2.5-inch HDD/SSD dummy module
Ê
Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools:
tool-less
